PLASMA CUTTERS

PL40E

PL50HG

PL70HG

PL100HG

CUTTING EDGE TECHNOLOGIES!

These durable and easy-to-use plasma cutters cut through rusted, coated, or textured materials with ease. The modern IGBT inverter technology ensures that the Soldatech powered by HG plasma cutters are lightweight and provide high powers and switch-on times. The overload protection combined with the built-in fan prevent overheating.

Furthermore, the Pilot ARC pre-ignition and HF ignition guarantee optimal combustion. All this in an ABS shock-resistant case with a clear control panel that can be adjusted, even during cutting work.

All Soldatech by HG plasma cutters are equipped with the following functions:

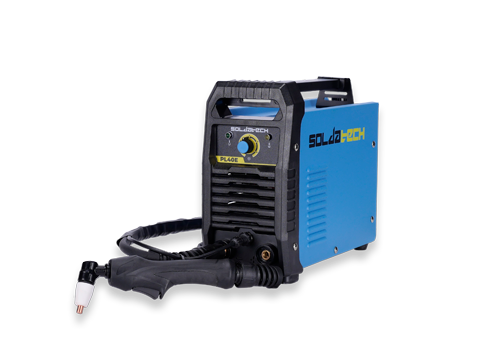

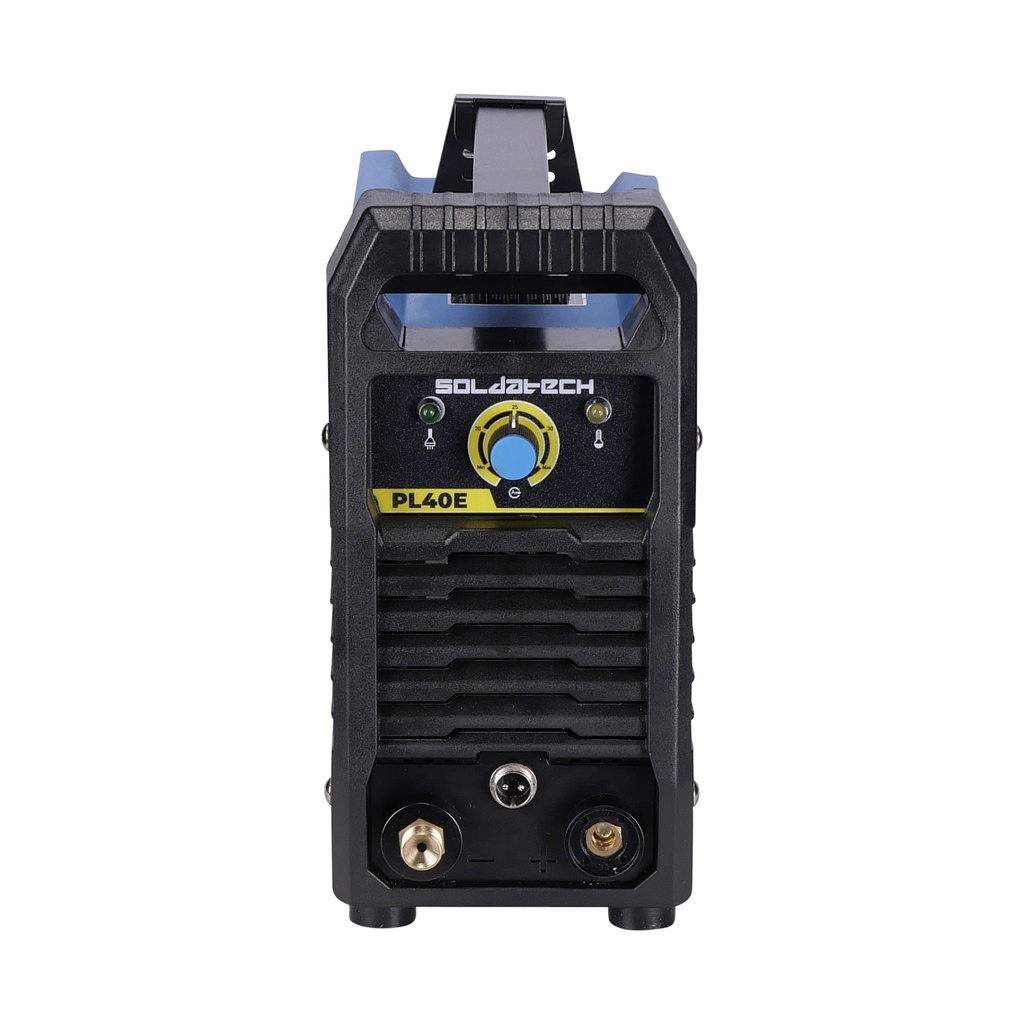

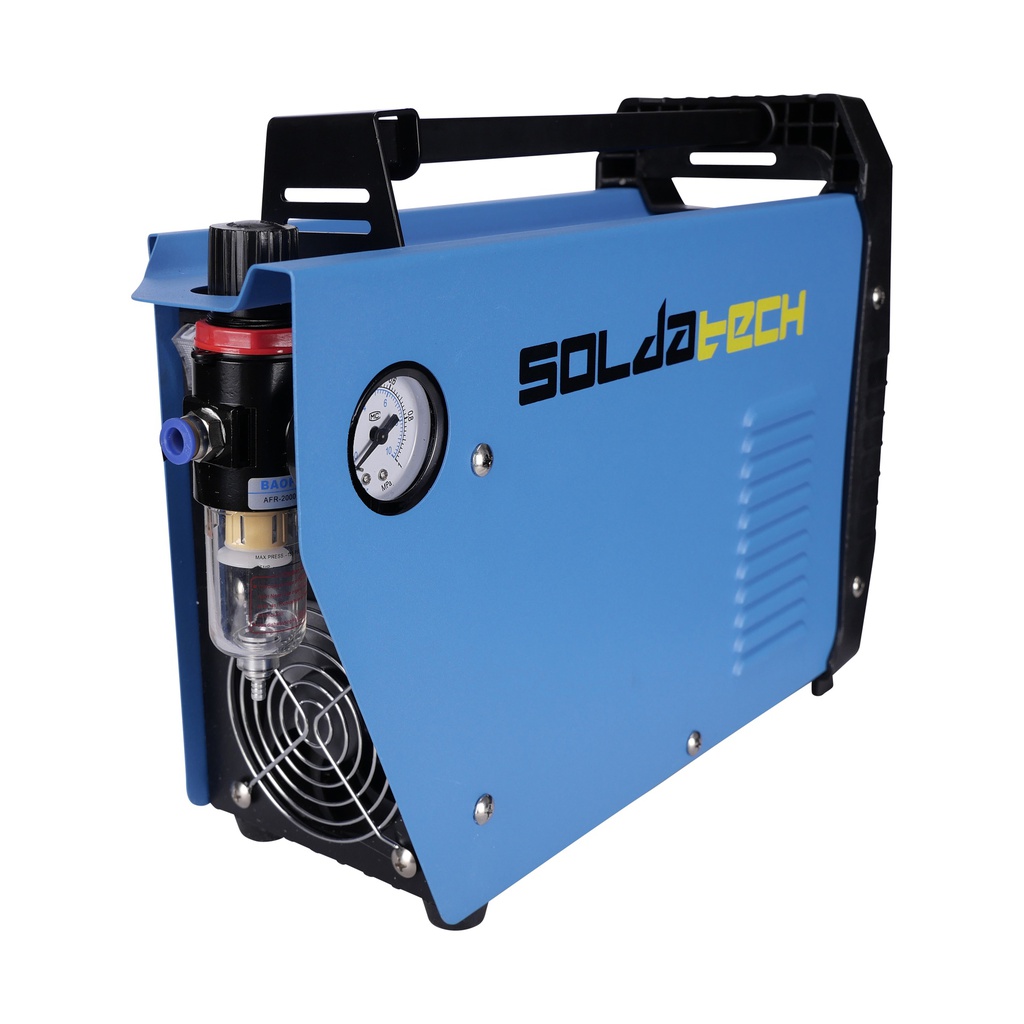

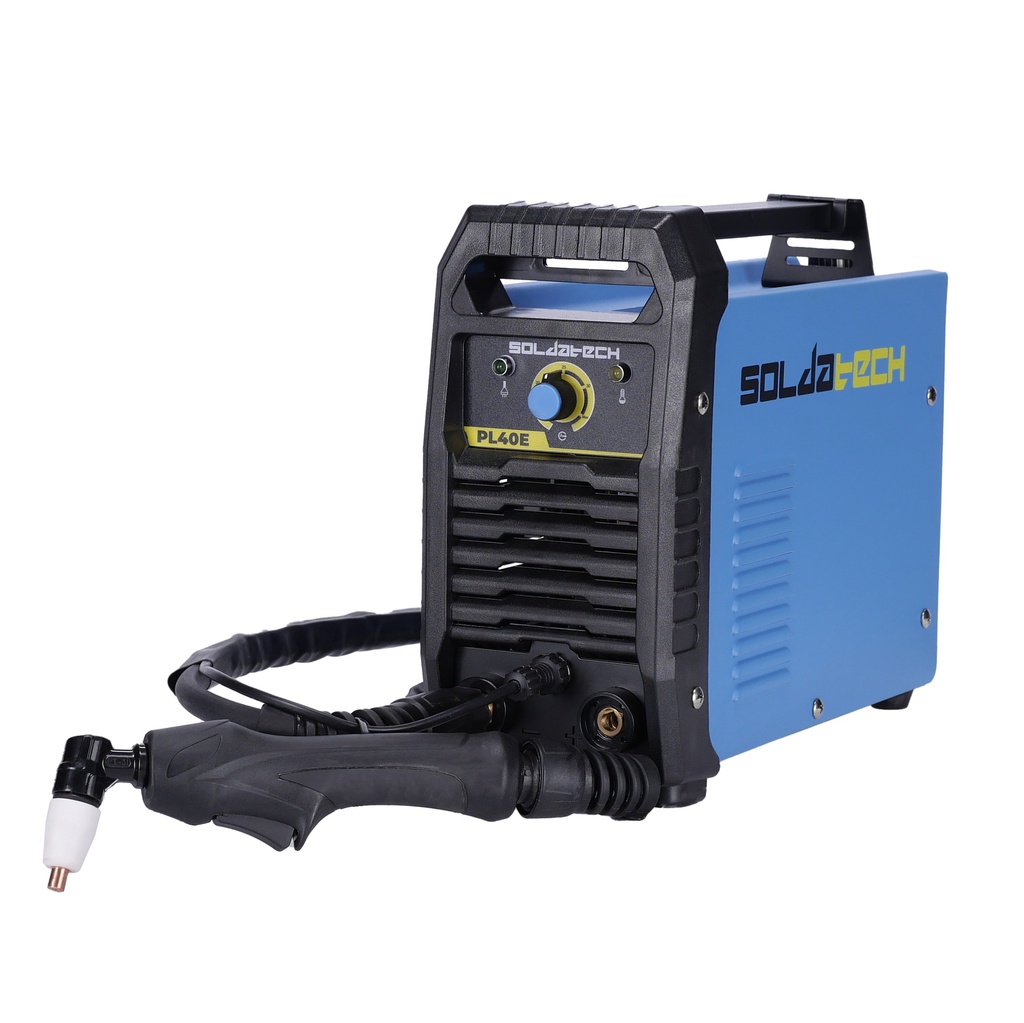

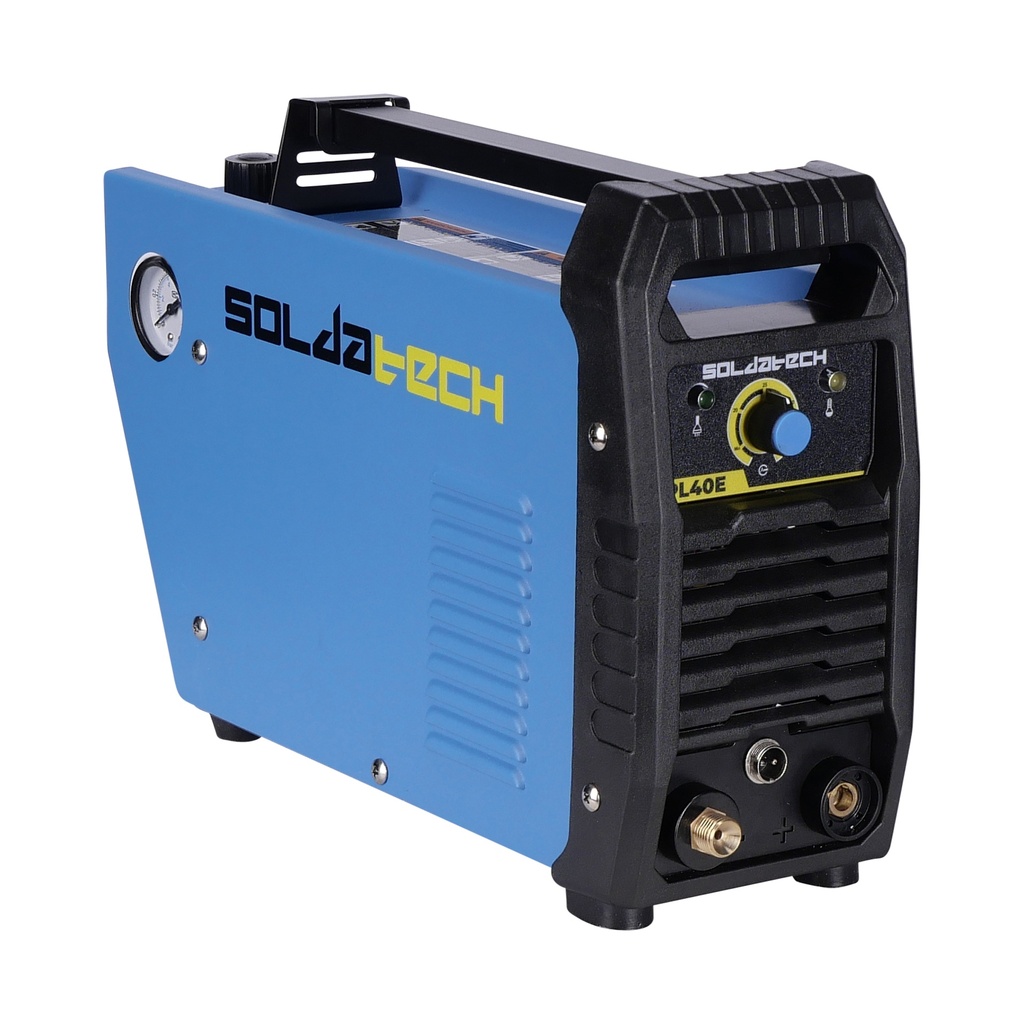

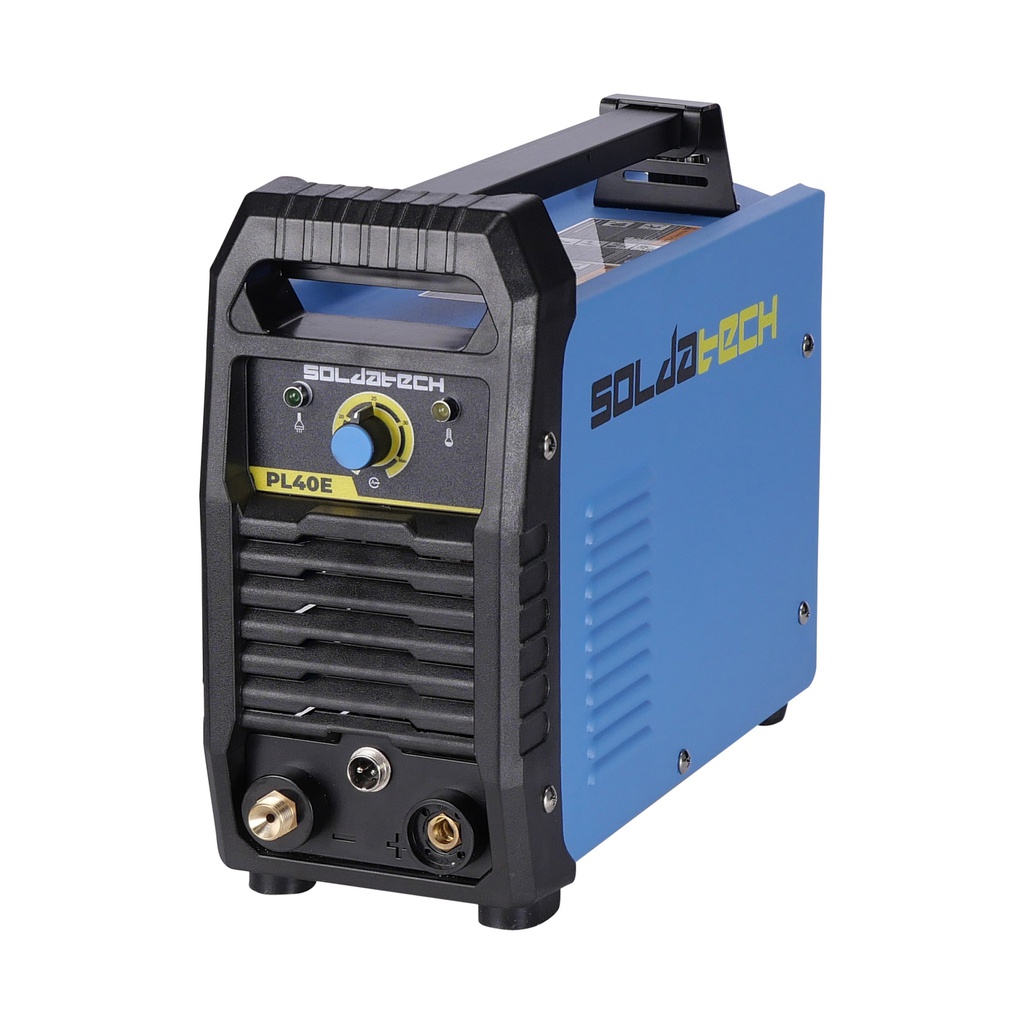

PL40E

Plasma cutter

This Soldatech Original plasma cutter cuts with high-quality results through almost all ferrous and non-ferrous materials. The cutter ignites very easily thanks to the HF ignition and cuts smoothly through rusted, coated or textured material up to 12mm.
The PL40E has a user-friendly control panel and can even be adjusted during cutting work, so that the best cutting result is achieved.
The modern IGBT inverter technology not only ensures that the PL40E delivers long-lasting performance with more power, but it also makes the cutter lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality cutting performance is guaranteed for a long time.
Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

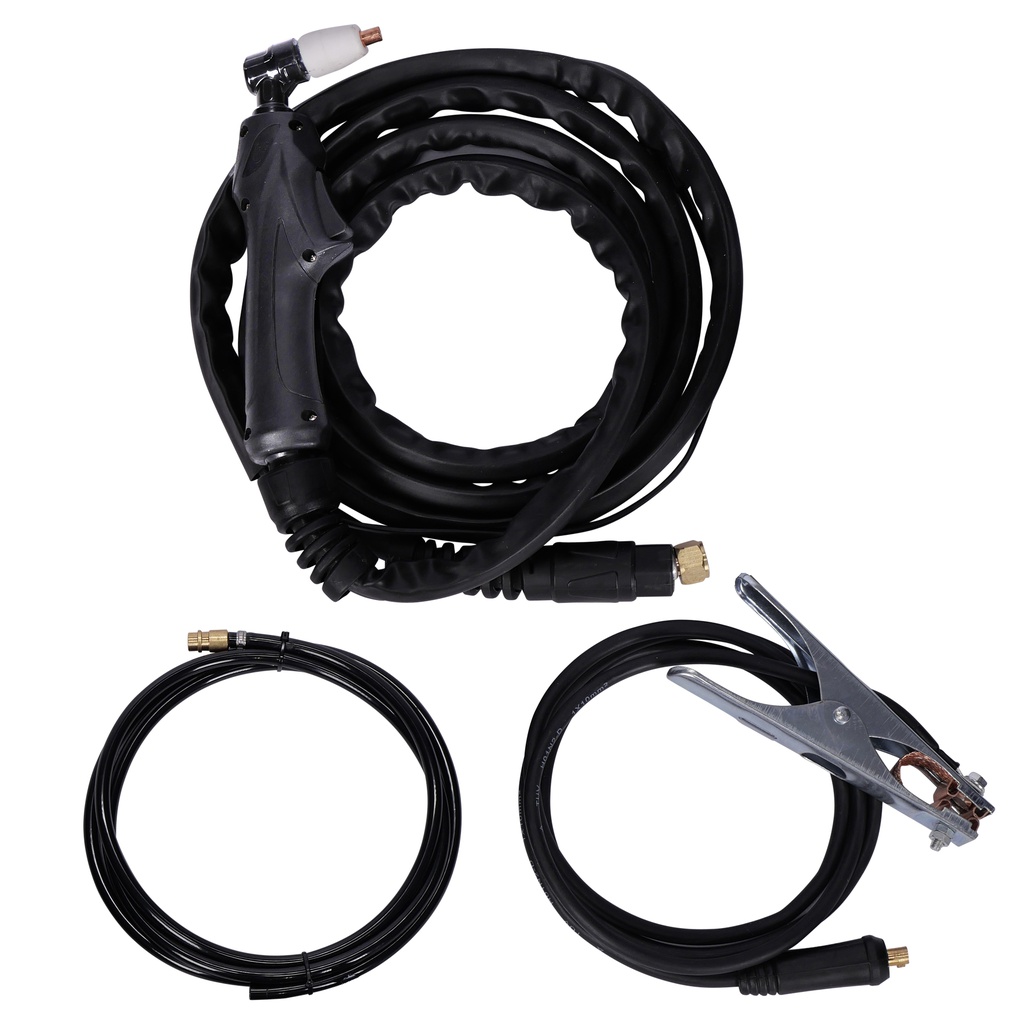

Each PL40E comes standard including:

  • torch with 2.5m cable

  • welding ground clamp with 1.8m cable

  • air/shielding gas hose 2m

  • gas line 2m

  • 3x cutting tip

  • 3x cutting electrode

  • 3x ceramic cap

Optimal cutting thickness (when using compressed air):

  • copper = 1 - 4mm

  • stainless steel = 1 - 8mm

  • aluminum = 1 - 8mm

  • steel = 1 - 10mm


Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V

  • Input power
    5.8kW

  • Max. cutting thickness
    12mm

  • Circuit breaker
    16A B-char

  • Duty cycle @20C
    45% - 40A

  • Insulation class
    H

  • Duty cycle @40C
    20% - 40A

  • Air consumption
    220L/min

  • Protection class
    IP21S

  • Welding current range
    15 - 40A

  • Dimensions
    410.0mm x140.0mm x287.0mm

  • Weight
    6.4Kg

Strongpoints:

  • Protected regulator with moisture separator

  • Switch in the torch

  • Infinitely adjustable cutting current

  • IGBT inverter technology

  • Lightweight


Downloads:

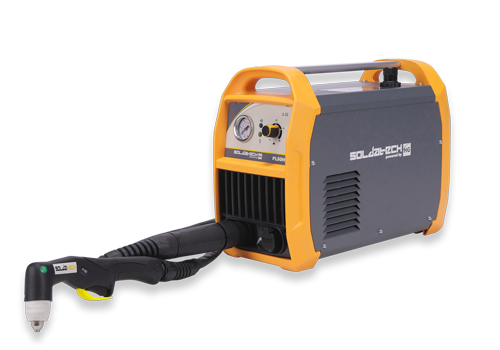

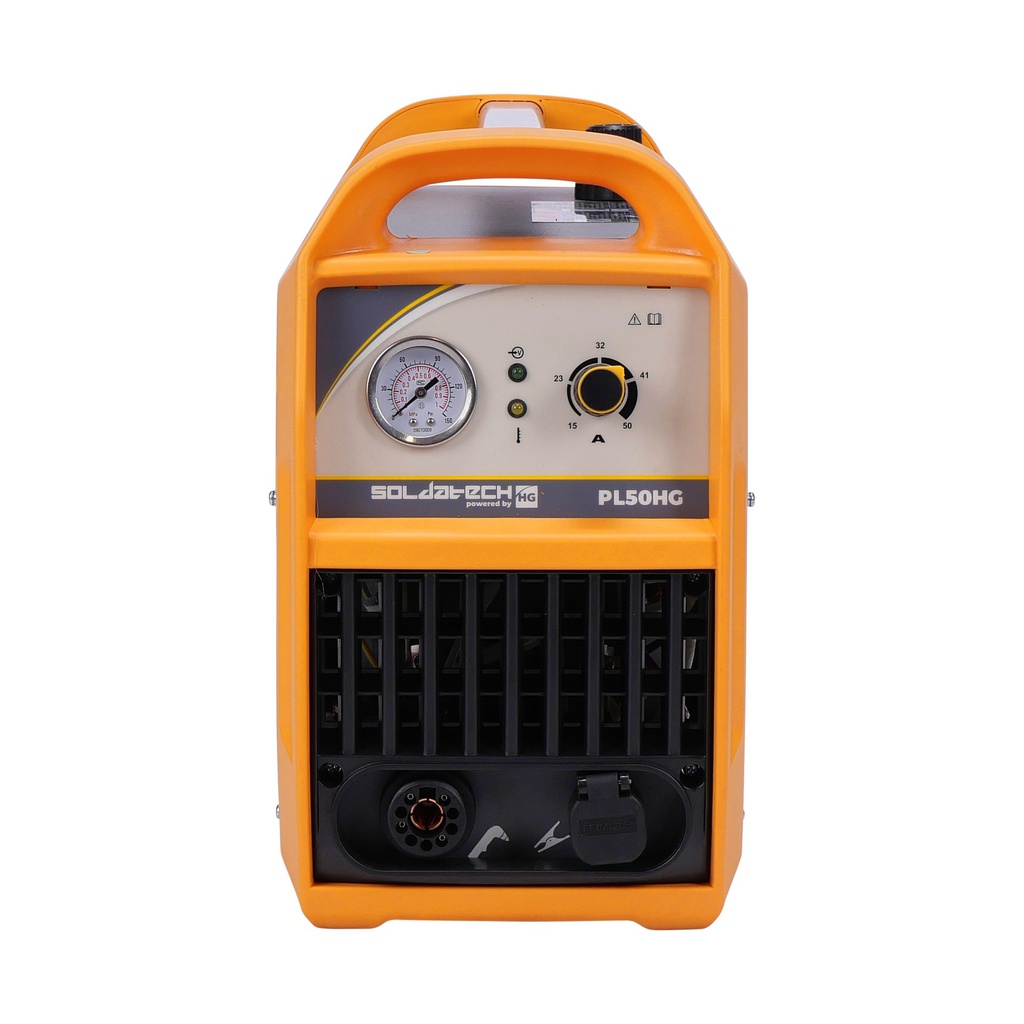

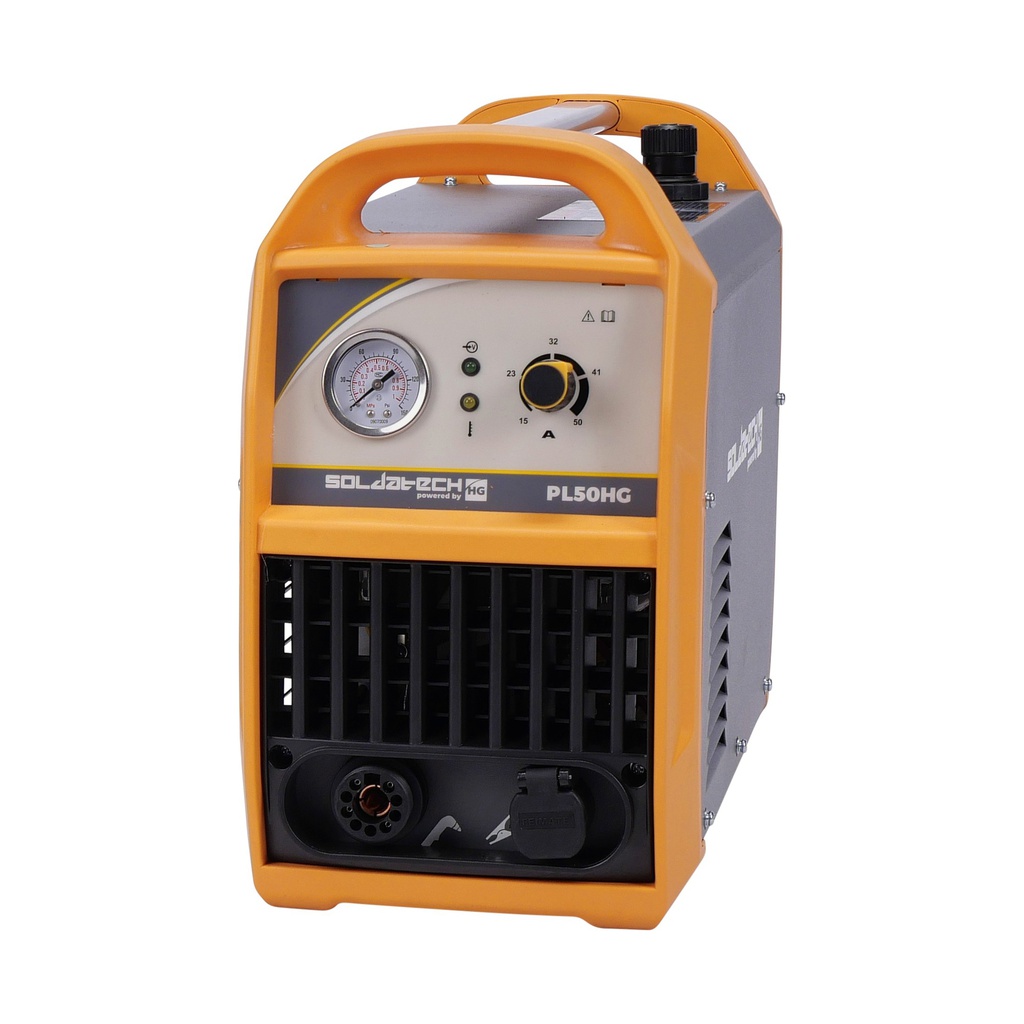

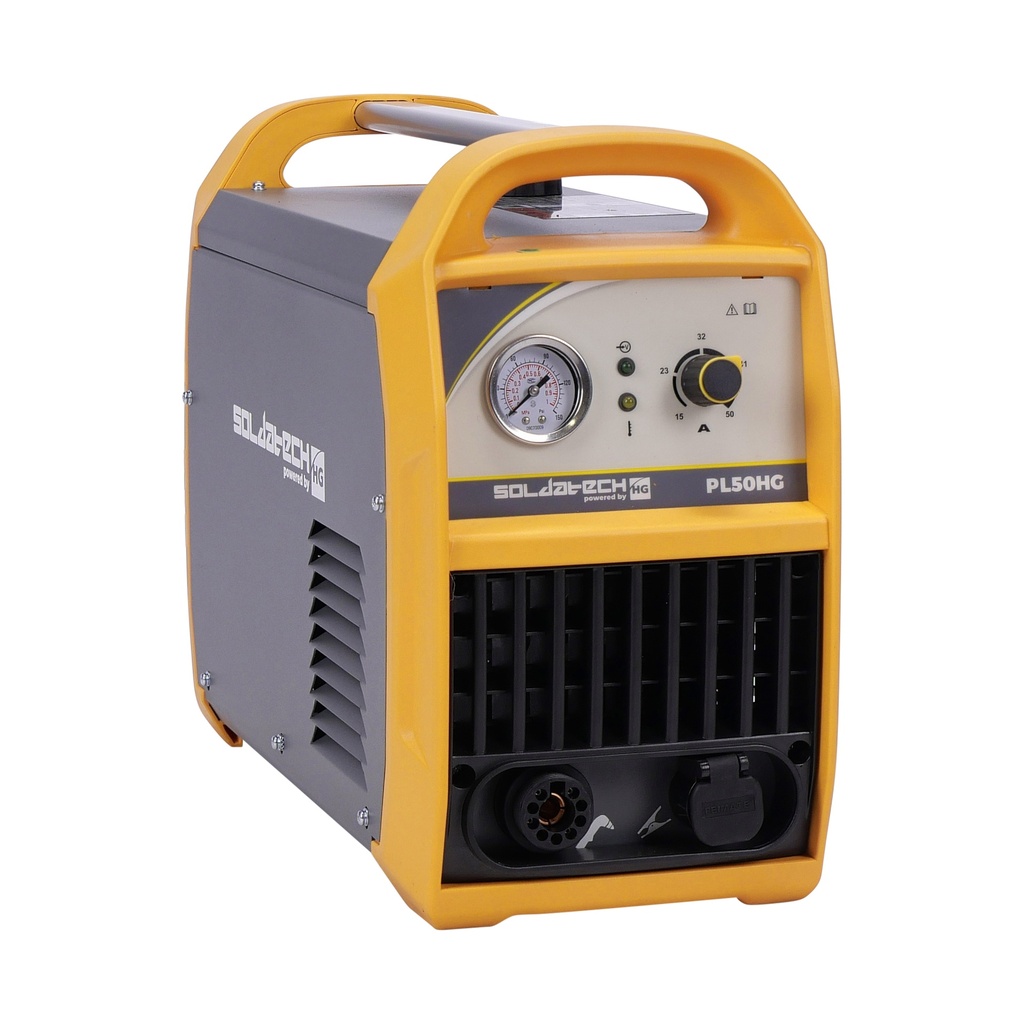

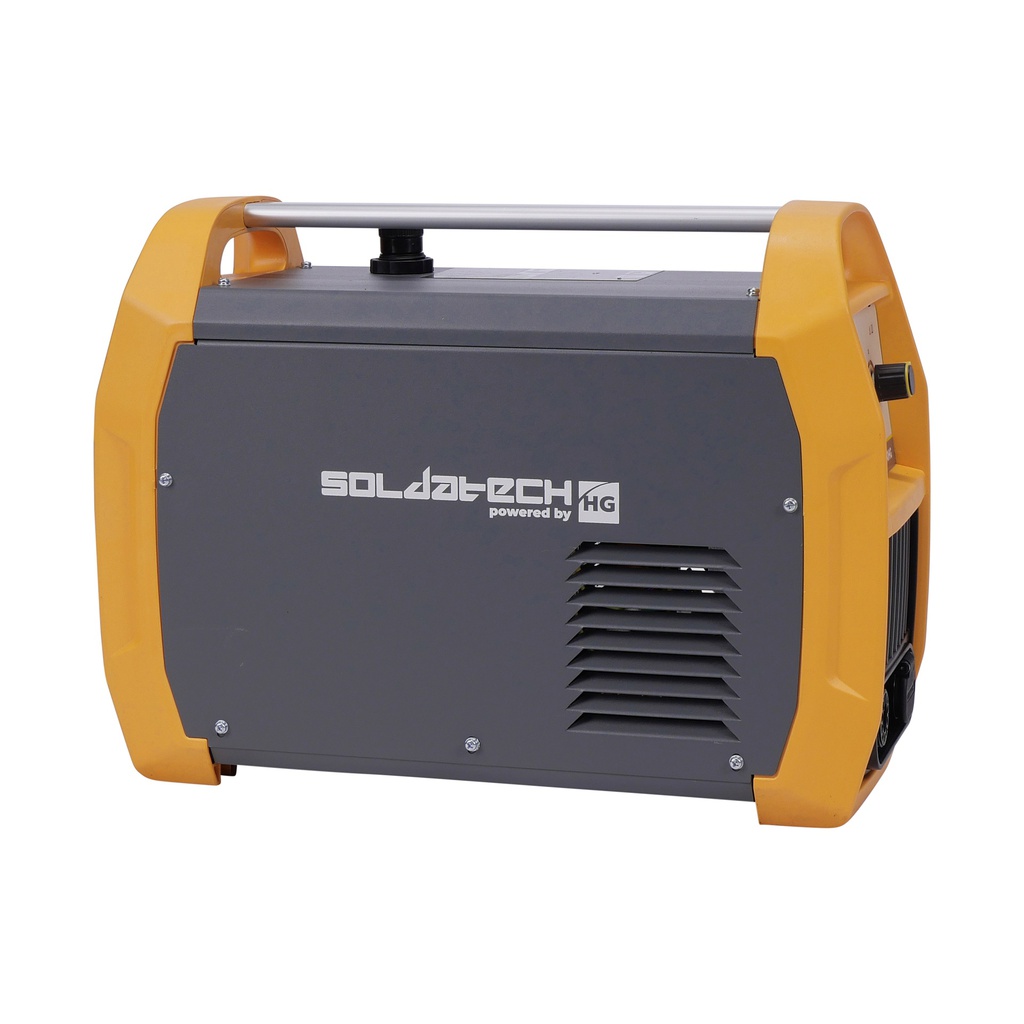

PL50HG

Plasma cutter / plasma cutting machine

This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL50HG is a compact, powerful and easy to operate plasma cutter equipped with Pilot ARC pre-ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting through rusted, coated or structured material up to 20mm without any difficulty.

The PL50HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology not only ensures that the PL50HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

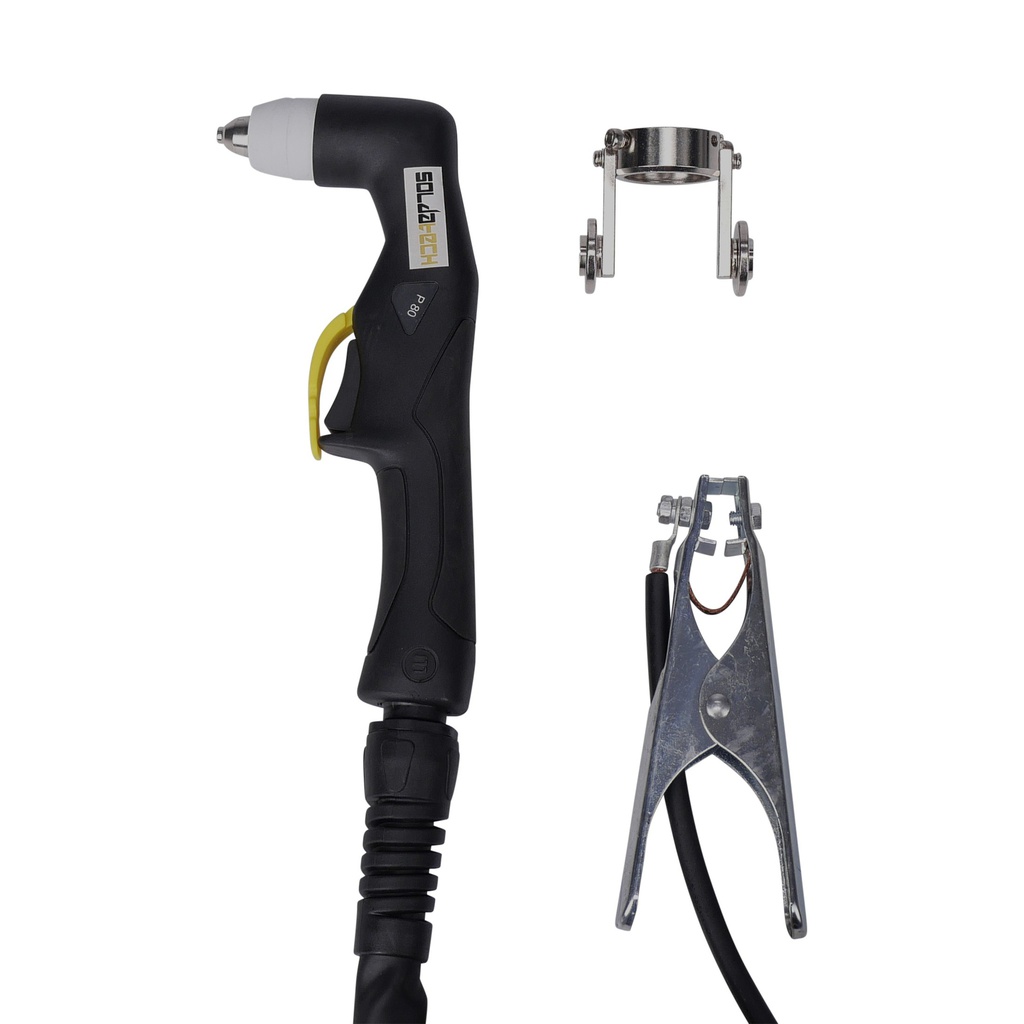

Each PL50HG comes standard with:

  • Soldatech PL80M5 plasma torch with 5m cable

  • Welding ground clamp with 2m 16mm² cable

  • Gas line of 4m with hose clamps

  • Neoprene power cable 2m 3x2.5mm²

  • European dinse couplers 9mm



Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    230V - 1 Phase

  • Input power
    7.6kVA

  • Max. cutting thickness
    20mm

  • Circuit breaker
    20A C-char

  • Max. unloaded voltage
    293V

  • Duty cycle @20C
    60% - 50A

  • Duty cycle @40C
    20% - 50A

  • Air consumption
    220L/min

  • Protection class
    IP21S

  • Welding current range
    15 - 50A

  • Dimensions
    459.0mm x200.0mm x338.0mm

  • Weight
    11.0Kg

Strongpoints:

  • IGBT invertor technology

  • Infinitely adjustable

  • Pilot ARC ignition

  • ABS shock resistant housing

  • 5 years warranty


Downloads:

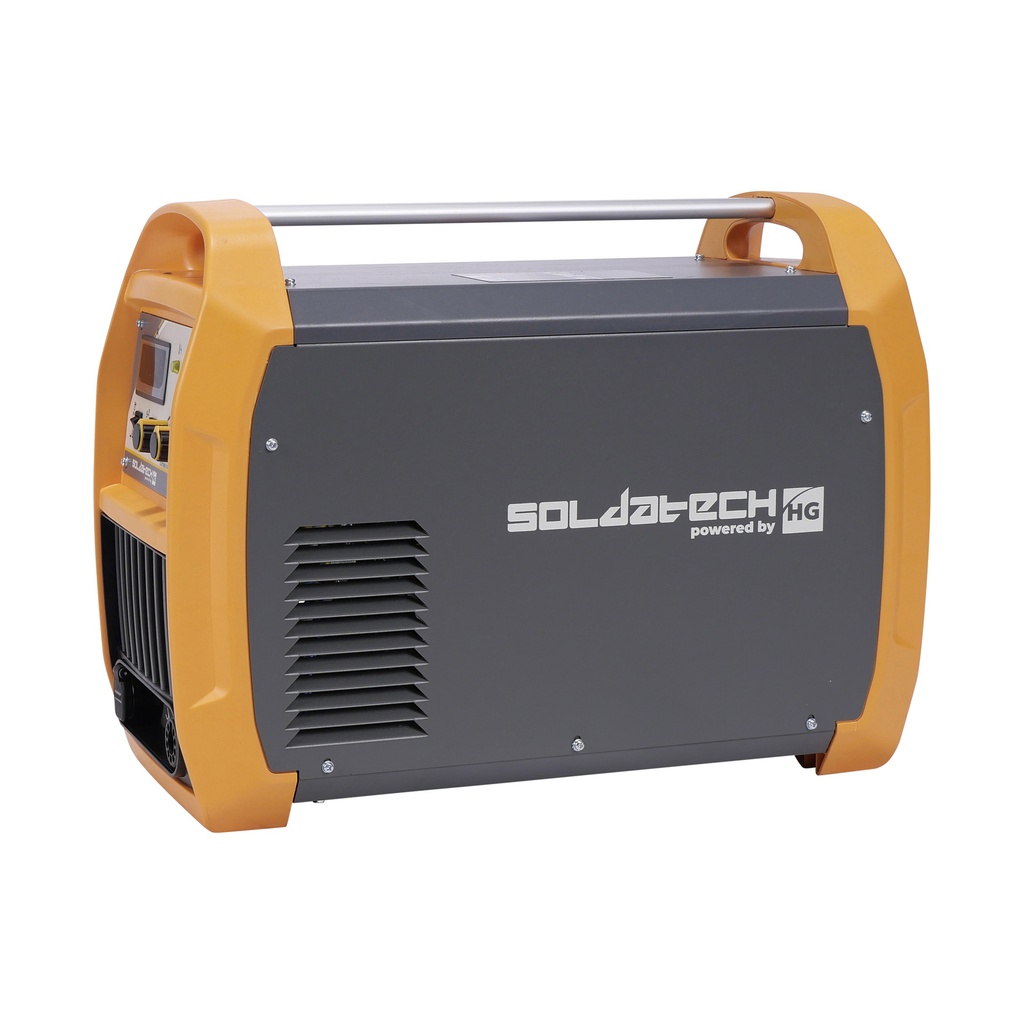

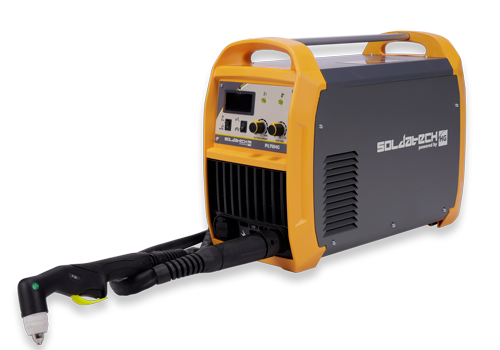

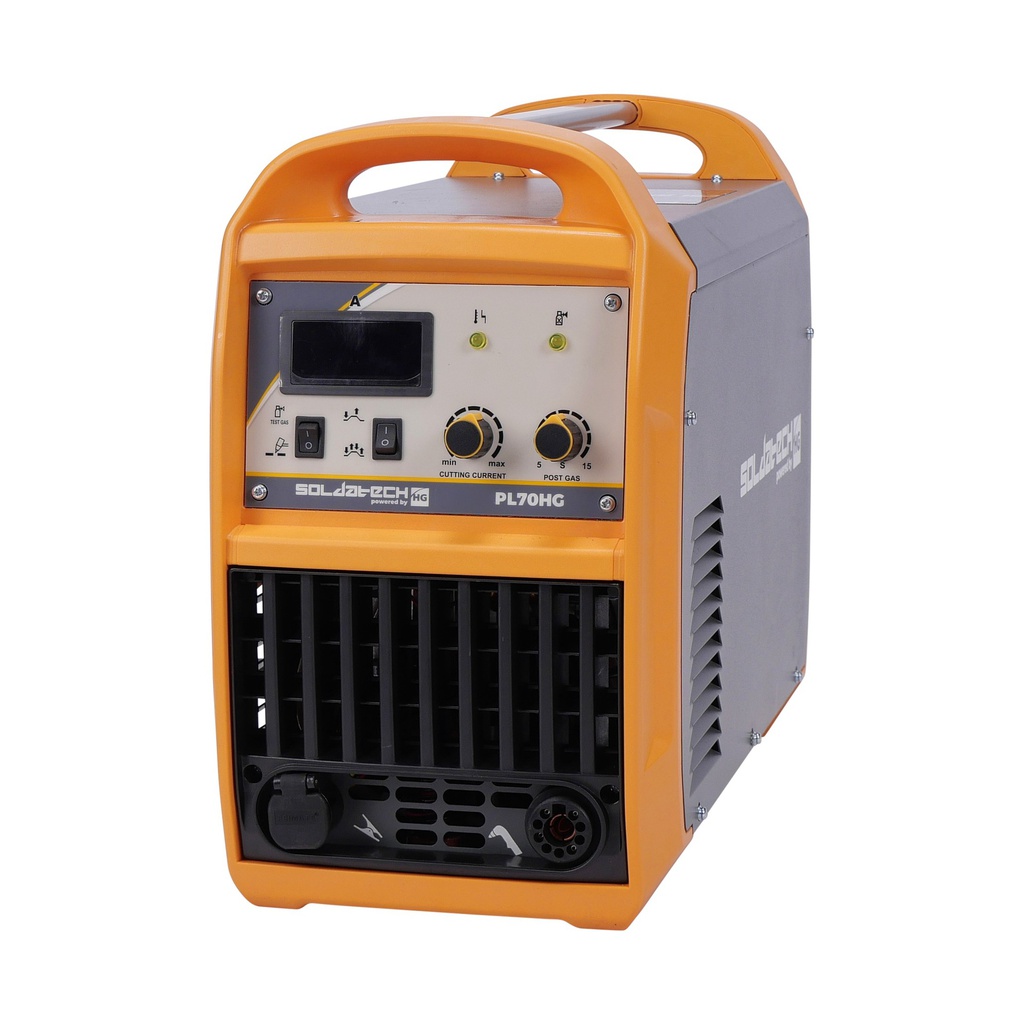

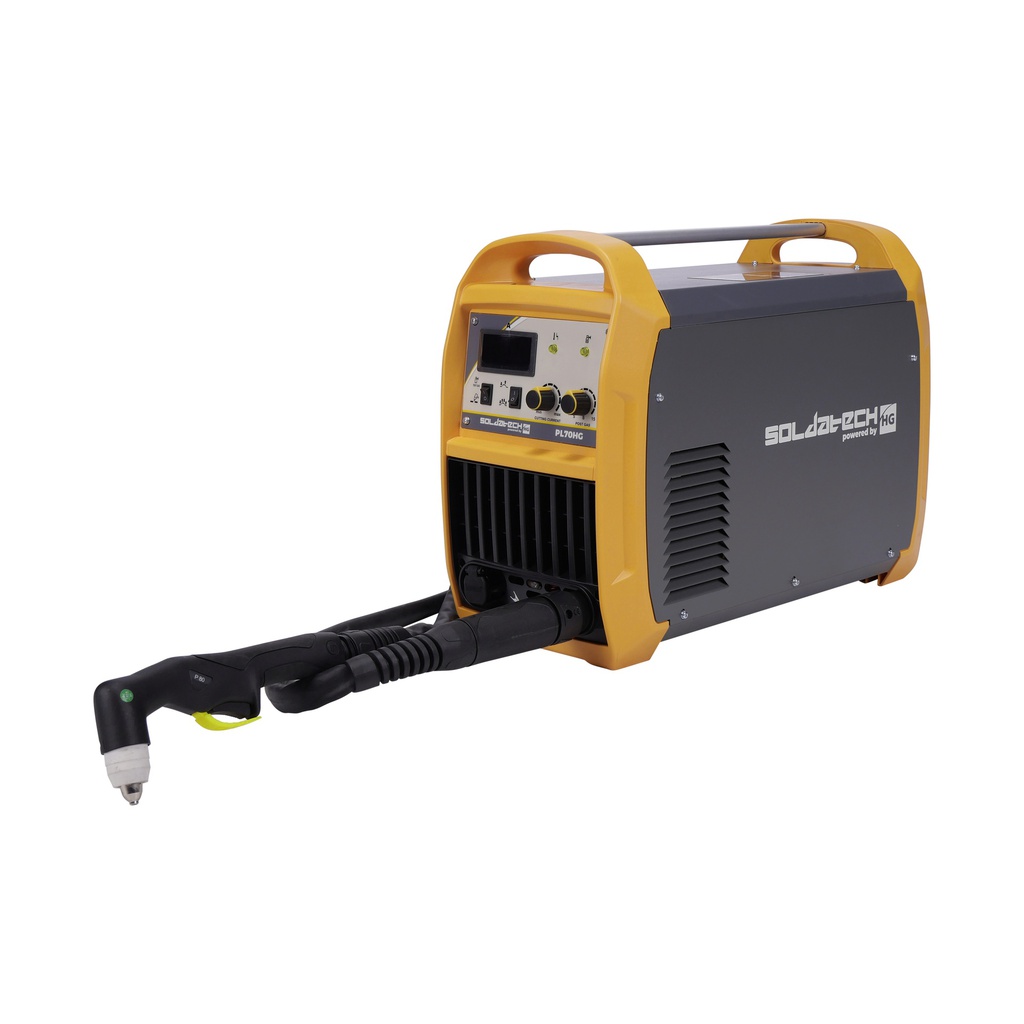

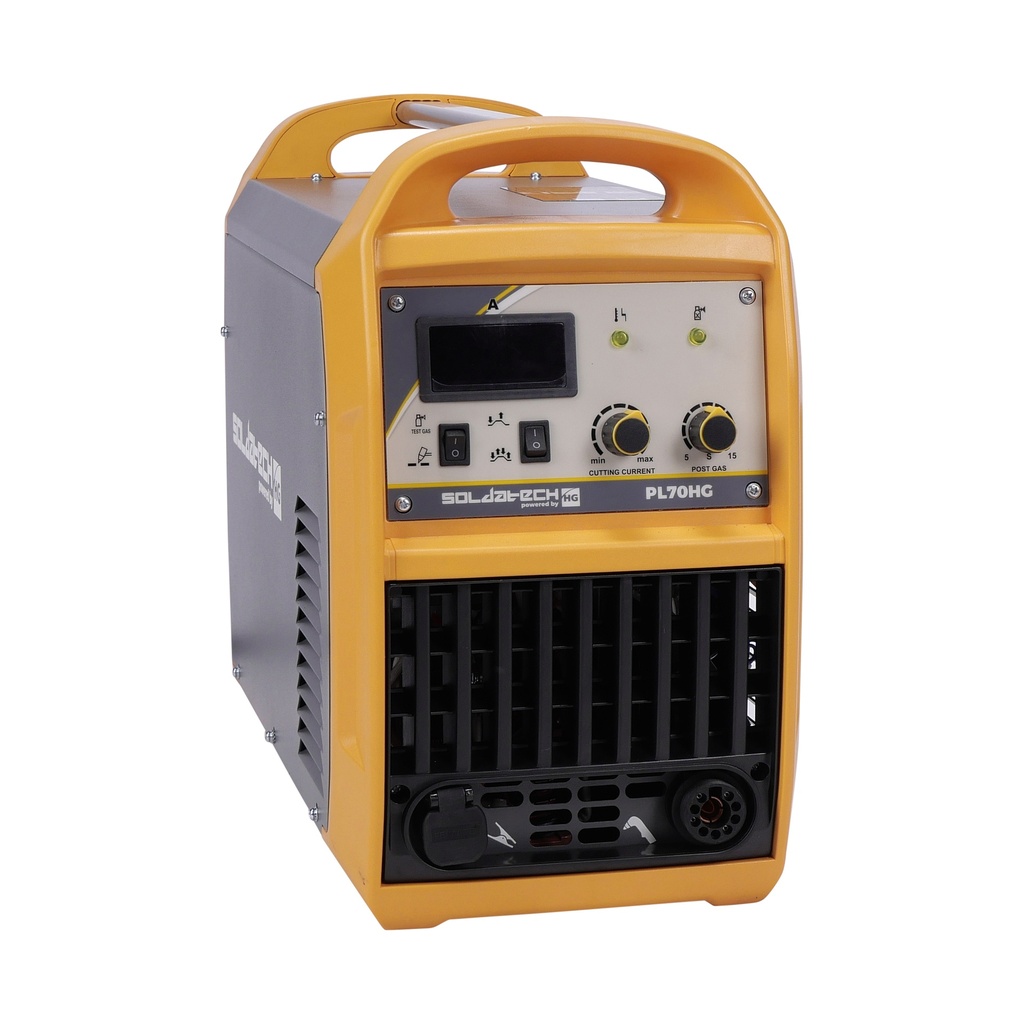

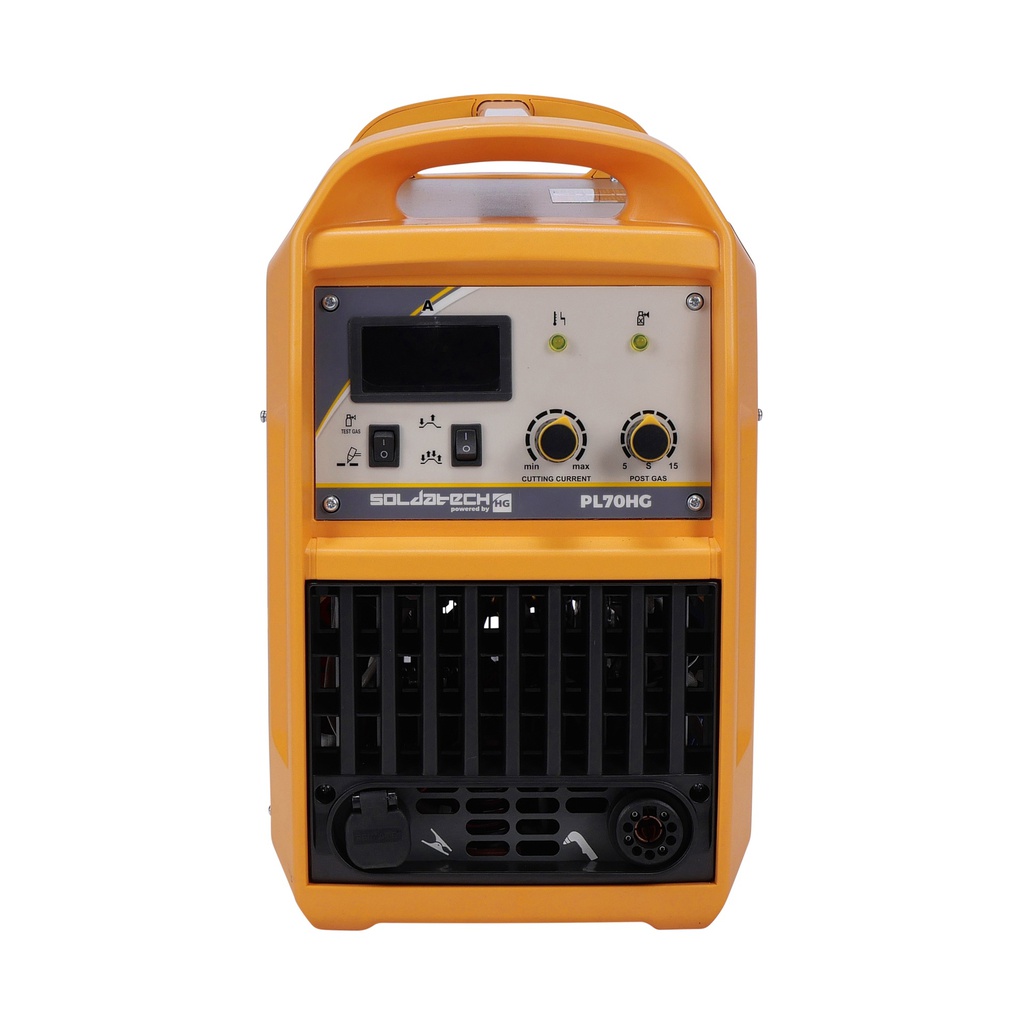

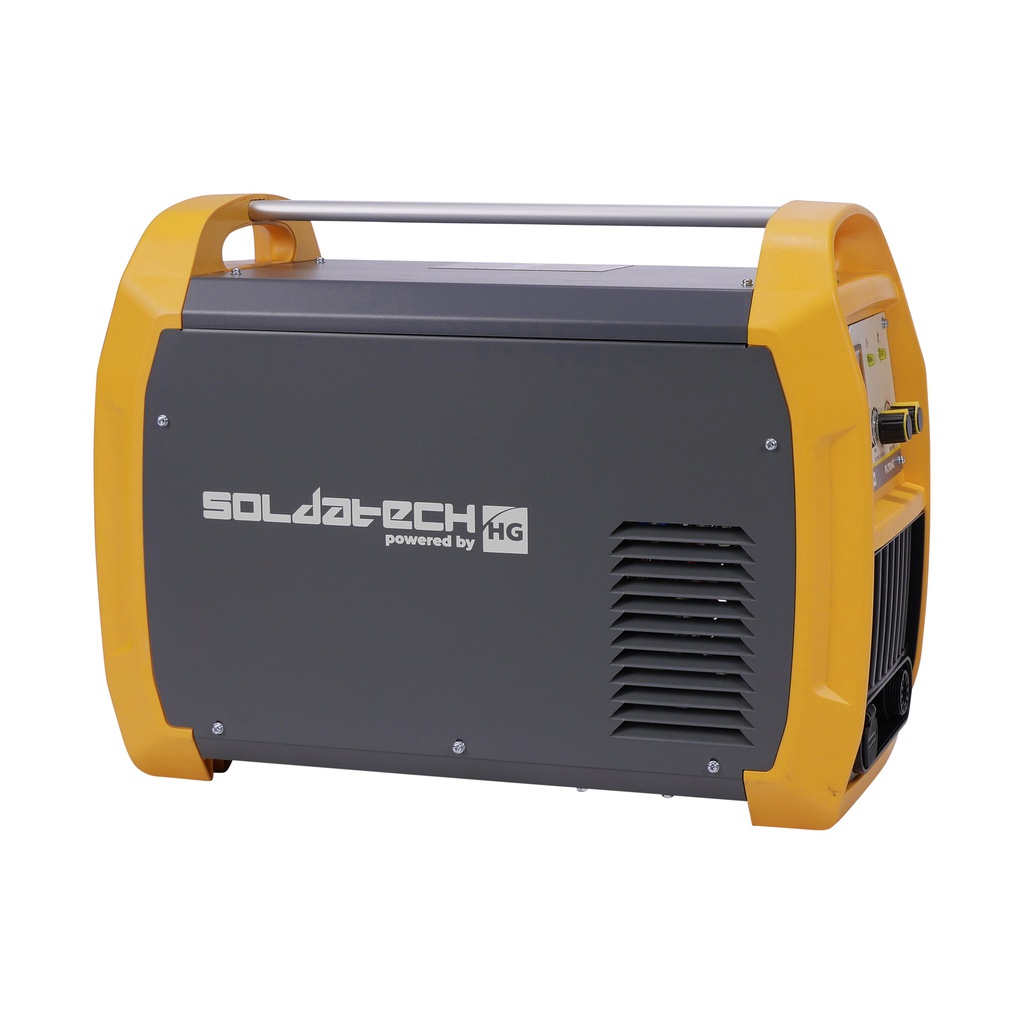

PL70HG

Plasma cutter / plasma cutting machine
This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL70HG is a compact, powerful and easy to use plasma cutter that is equipped with Pilot ARC ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting smoothly through rusted, coated or structured material up to 25mm.
The PL70HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology not only ensures that the PL70HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL70HG comes standard with:

  • Soldatech PL80M5 plasma torch with 5m cable

  • Workpiece clamp with 2m 16mm² cable

  • Gas pipe of 4m with hose clamps

  • 5-pin 32A plug with 2.5m 4x2.5mm² cable

  • Standard 9mm Dinse cable couplings


Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    400V - 3 Phase

  • Input power
    9.4kVA

  • Max. cutting thickness
    25mm

  • Max. unloaded voltage
    330V

  • Recommended cutting thickness
    17mm

  • Circuit breaker
    20A B-char

  • Duty cycle @20C
    100% - 70A

  • Duty cycle @40C
    60% - 70A

  • Air consumption
    220L/min

  • Protection class
    IP21S

  • Welding current range
    25 - 70A

  • Dimensions
    550.0mm x245.0mm x405.0mm

  • Weight
    23.5Kg

Strongpoints:

  • IGBT invertor technology

  • Infinitely adjustable

  • Pilot ARC ignition

  • 2-stroke / 4-stroke switch

  • 5 years warranty


Downloads:

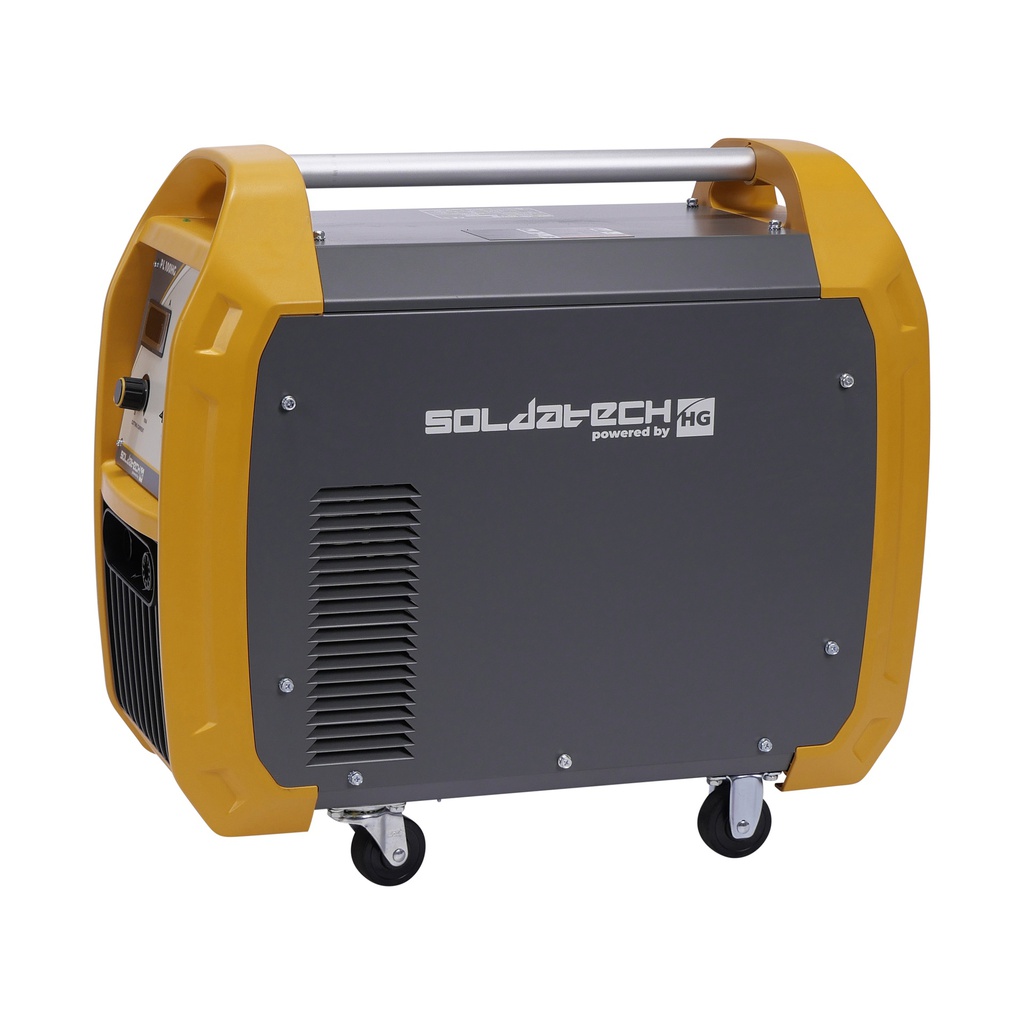

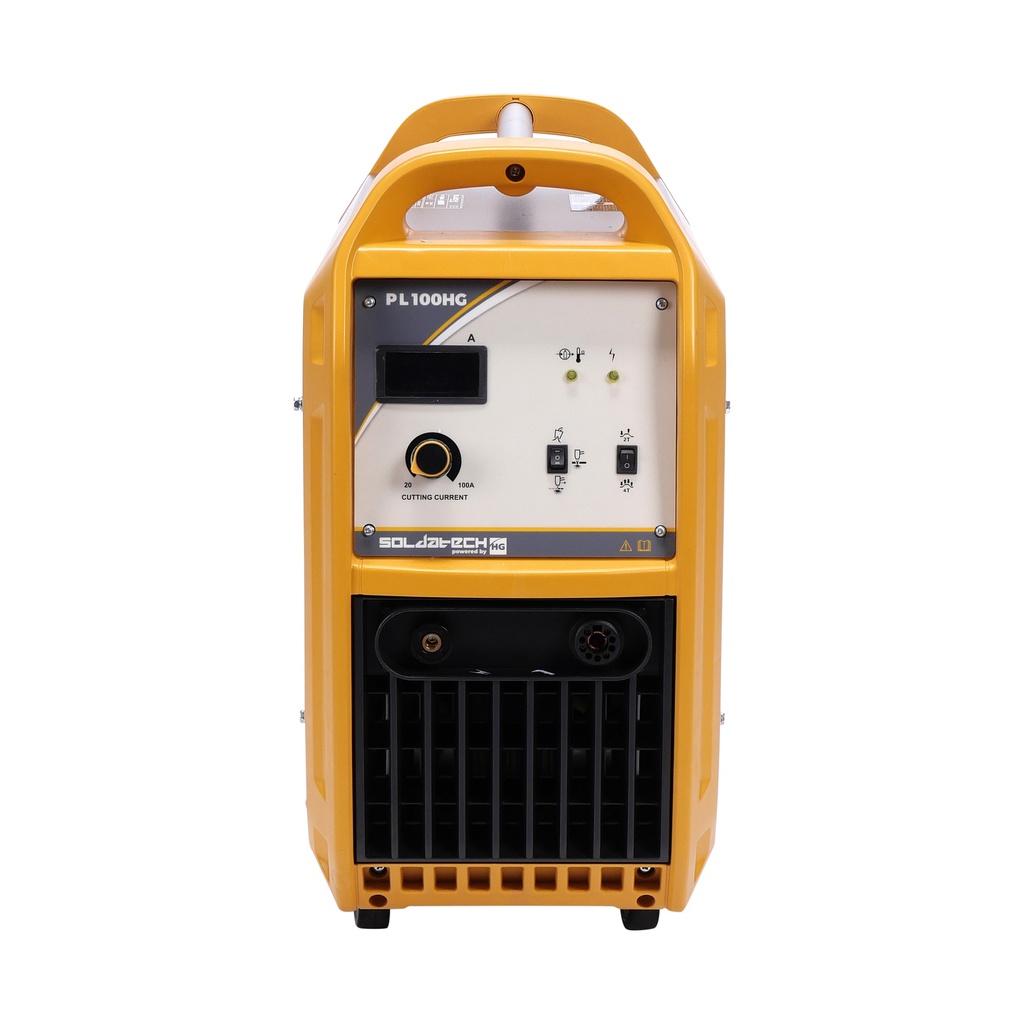

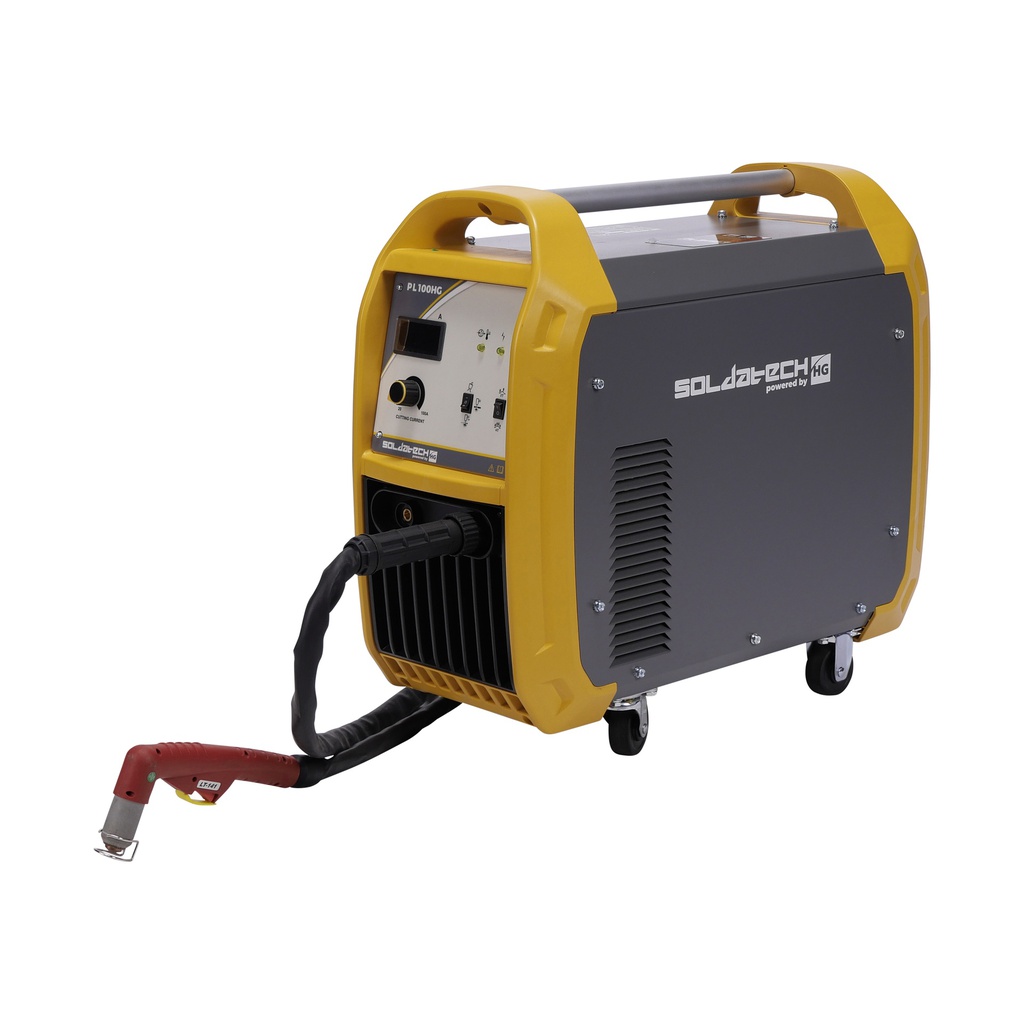

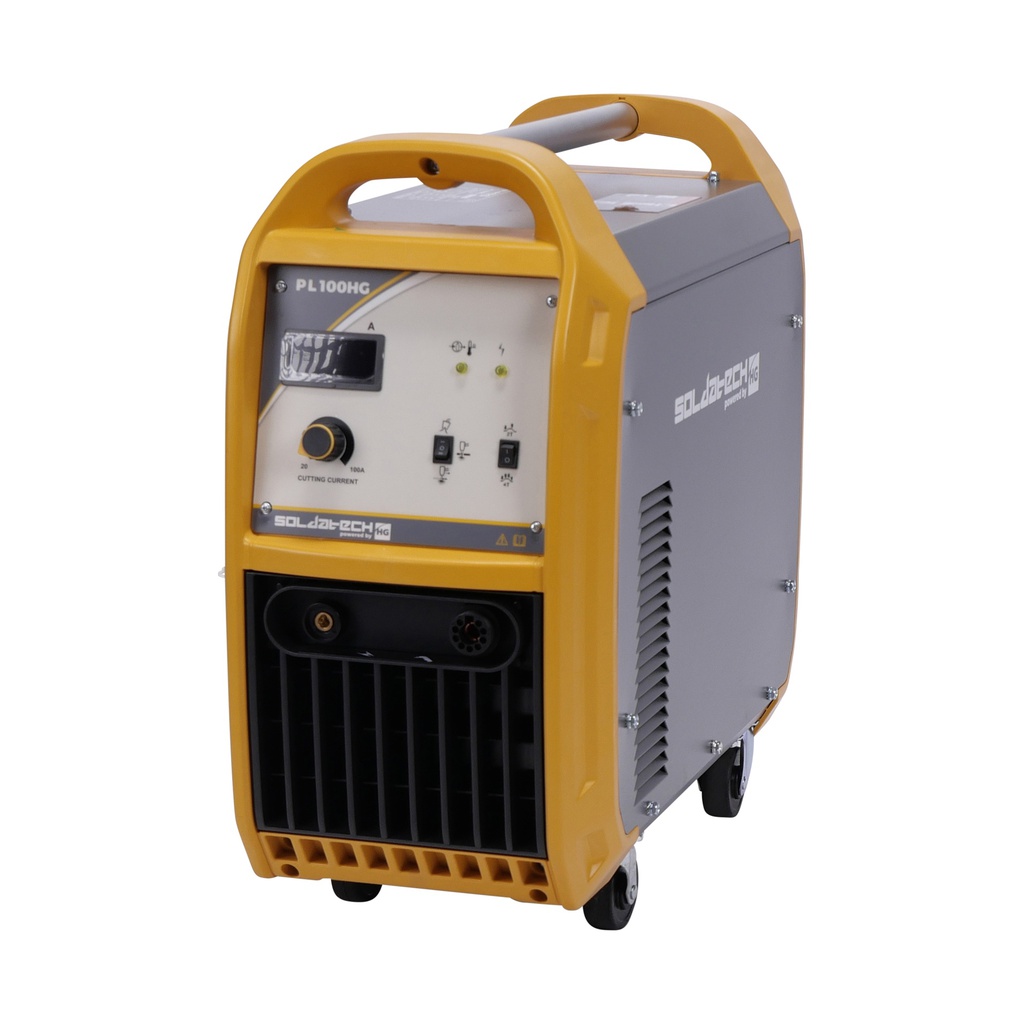

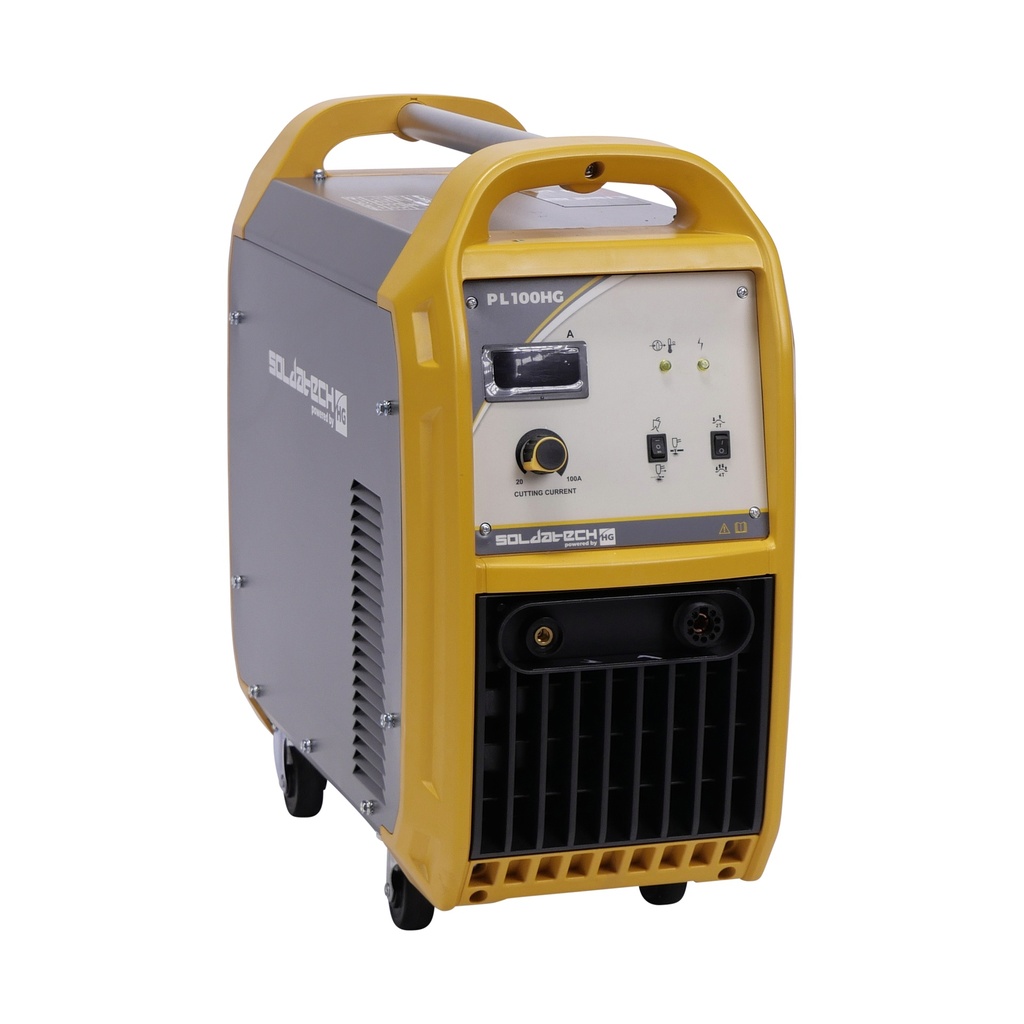

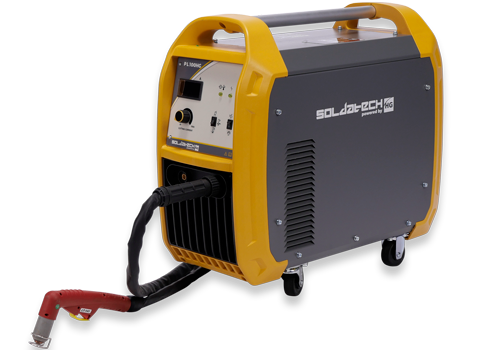

PL100HG

Plasma cutter / plasma cutting machine

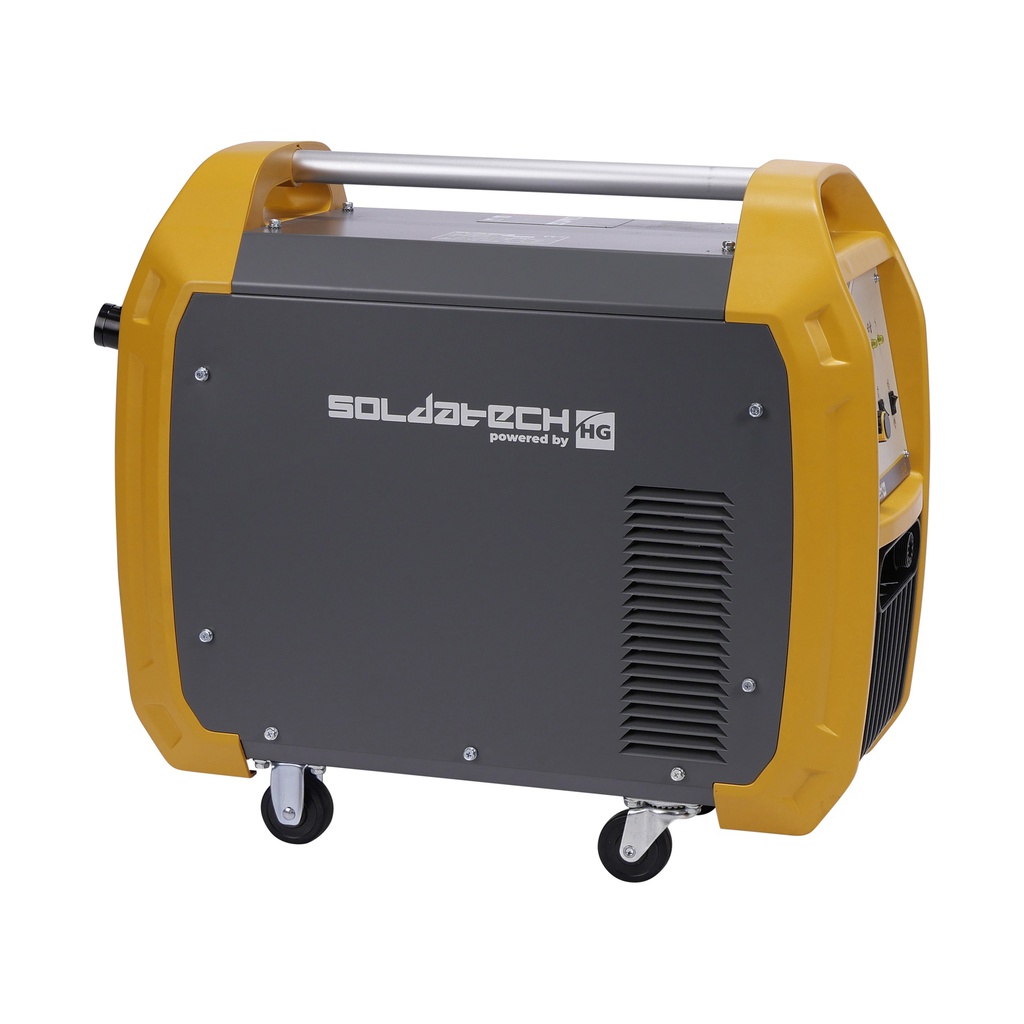

This Soldatech powered by HG plasma cutter cuts steel and aluminum with high-quality results. The PL100HG is among the heavier plasma cutters, it ignites very easily thanks to the HF ignition and cuts easily through rusted, coated or structured material up to 35mm. The plasma cutter has four swivel castors, making it mobile during use.

The PL100HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology ensures that the PL100HG delivers sustainable performance with more power and a higher duty cycle. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality cutting performance is guaranteed over a long period of time.

Ideal for cutting carbon steel, low alloy steel, stainless steel and aluminum alloys.

Each PL100HG comes standard with:

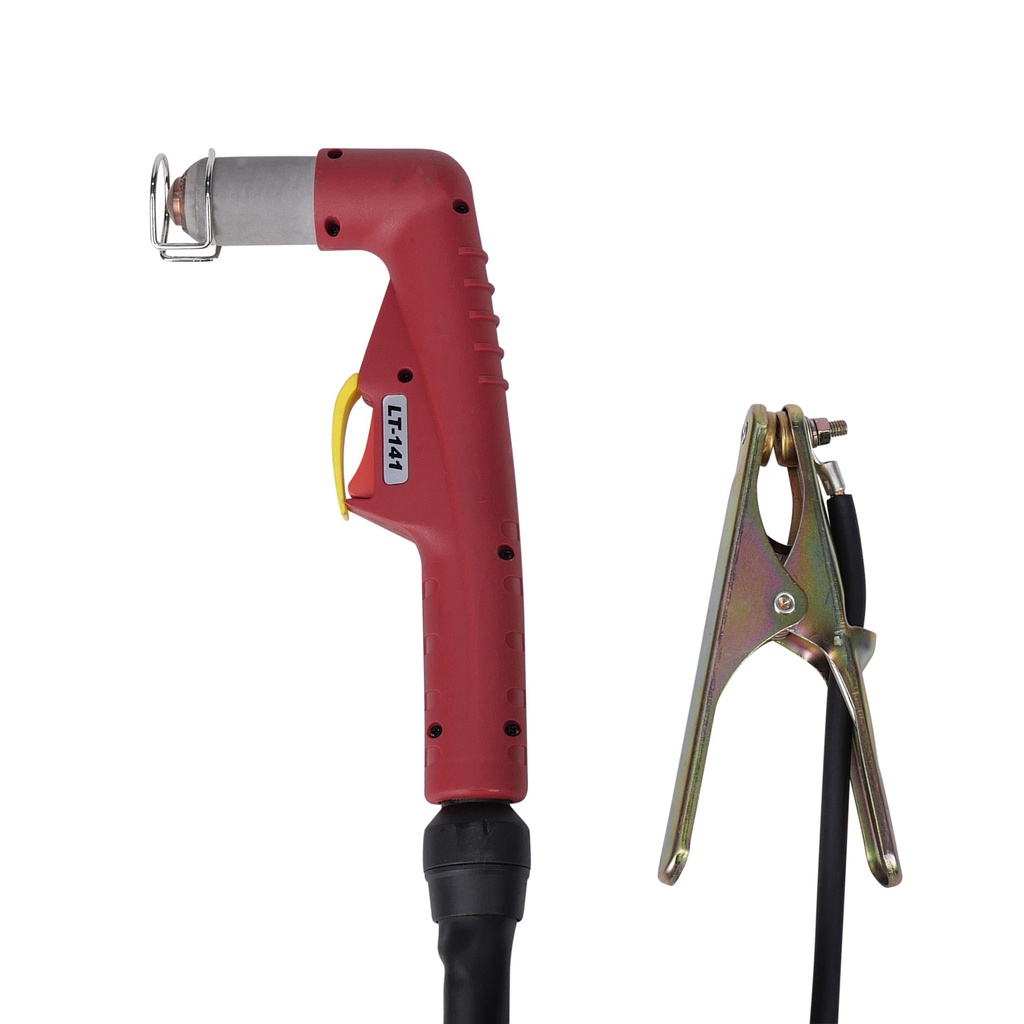

  • Soldatech PL141M3 plasma torch with 5m cable

  • Welding ground clamp with 3m 16mm² cable

  • Gas line of 4m with hose clamps

  • 5-pin 32A plug with 3m 4x2.5mm² cable

  • European dinse couplers 9mm



Specifications:

  • Frequency
    50/60 Hz

  • Voltage
    400V - 3 Phase

  • Input power
    20.4kVA

  • Max. cutting thickness
    35mm

  • Max. unloaded voltage
    325V

  • Recommended cutting thickness
    25mm

  • Circuit breaker
    20A C-char

  • Duty cycle @20C
    60% - 100A

  • Duty cycle @40C
    60% - 100A

  • Air consumption
    220L/min

  • Protection class
    IP21S

  • Welding current range
    20 - 100A

  • Dimensions
    719.0mm x308.0mm x633.0mm

  • Weight
    43.0Kg

Strongpoints:

  • IGBT invertor technology

  • Infinitely adjustable

  • Pilot ARC ignition

  • 2-stroke / 4-stroke switch

  • 5 years warranty


Downloads:
