MIG MAG Torches
- Ergonomic handle
- Ball joint at the bottom of the torch
- Optimal position of the switch
Soldatech welding torches have an ergonomic handle and a ball joint at the bottom of the torch. This, in combination with the optimal position of the switch, ensures great ease of use in all welding positions.
All consumables for these torches are also available.
-
Connection
euro connector
-
Cooling system
gas
-
CO₂ load
180A
-
Mixed Gas Load
150A
-
Duty cycle
60%
-
Wire diameter
1.0 mm

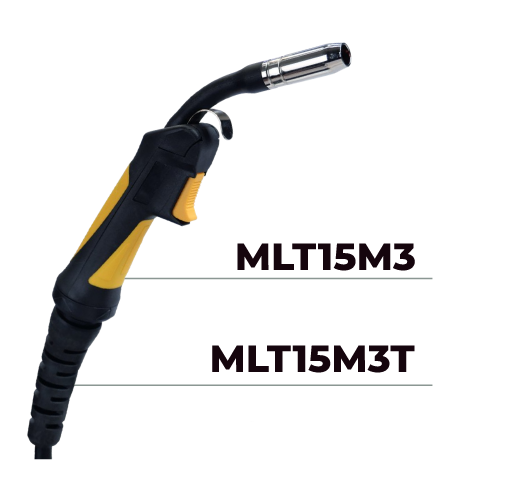

<p> <span style="font-weight: bolder;">Wear parts</span></p><p><span style="font-weight: bolder;">1. NOZZLE product code</span><br>spot welding nozzle MLT15SN<br>gas nozzle MLT15CN</p><p><span style="font-weight: bolder;">2. CONTACT TIP</span> M6 / 25mm<br>0.6mm MLT06M6T25<br>0.8mm MLT08M6T25<br>0.9mm MLT09M6T25<br>1.0mm MLT10M6T25</p><p>contact tip for aluminium<br>0.6mm MLT06M6T25AL<br>0.8mm MLT08M6T25AL<br>1.0mm MLT10M6T25AL</p><p><span style="font-weight: bolder;">3. SPRING</span><br>spring MLT15S<br><span style="font-weight: bolder;">4. TIP HOLDER</span><br>contact tip holder M6 MLT15T</p><p><br></p><p> <span style="font-weight: bolder;">MLT15M3 torch 3 meters</span></p><p><span style="font-weight: bolder;"> MLT15M3T torch 3 meters incl. teflon liner</span><br></p><p>Comes standard with 2 welding torch tips M6: 0.8 / 1.0<br></p>
-
Cooling system
gas
-
CO₂ load
250A
-
Mixed Gas Load
220A
-
Duty cycle
60%
-
Wire diameter
0.8 - 1.2mm

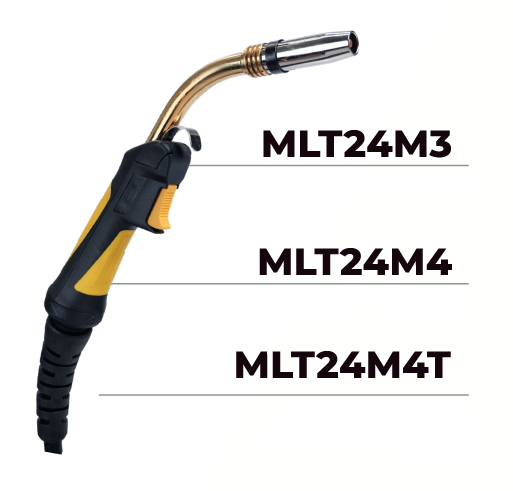

<p> <span style="font-weight: bolder;">Wear parts</span> <br></p><p><span style="font-weight: bolder;">1. NOZZLE product code</span></p><p>gas nozzle MLT24CN</p><p><span style="font-weight: bolder;">2. CONTACT TIP</span> M6 / 28mm<br>0.8mm MLT08M6T28<br>0.9mm MLT09M6T28<br>1.0mm MLT10M6T28<br>1.2mm MLT12M6T28</p><p>contact tip for aluminium<br>0.8mm MLT08M6T28AL<br>1.0mm MLT10M6T28AL<br>1.2mm MLT12M6T28AL</p><p><span style="font-weight: bolder;">3. TIP HOLDER</span><br>contact tip holder M6 MLT24ADM6<br><span style="font-weight: bolder;">4. GAS DISTRIBUTOR</span><br>gas distributor MLT24N</p><p><span style="font-weight: bolder;">MLT24M3 torch 3 meters</span></p><p><span style="font-weight: bolder;">MLT24M4 torch 4 meters </span></p><p><span style="font-weight: bolder;">MLT24M4T torch 4 meters incl. teflon liner</span></p> <p><br>Comes standard with 3 welding torch tips M6: 0.8 / 1.0 / 1.2 <br></p>
-
Cooling system
gas
-
CO₂ load
250A
-
Mixed Gas Load
220A
-
Duty cycle
60%
-
Wire diameter
0.8 - 1.2mm

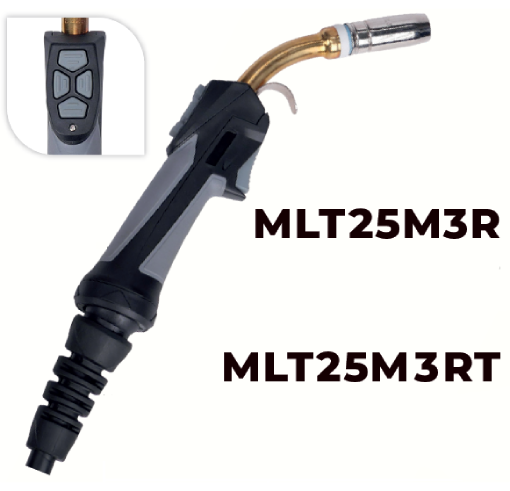

<p><span style="font-weight: bolder;">Wear parts</span></p><p><span style="font-weight: bolder;">1. NOZZLE</span> product code</p><p>spot welding nozzle MLT25SN<br>gas nozzle MLT25CN</p><p><span style="font-weight: bolder;">2. CONTACT TIP</span> M6 / 28mm<br>0.8mm MLT08M6T28<br>0.9mm MLT09M6T28<br>1.0mm MLT10M6T28<br>1.2mm MLT12M6T28<br>contact tip for aluminium<br>0.8mm MLT08M6T28AL<br>1.0mm MLT10M6T28AL<br>1.2mm MLT12M6T28AL</p><p><span style="font-weight: bolder;">3. TIP HOLDER</span><br>contact tip holder M6 MLT25ADM6<br><span style="font-weight: bolder;">4. SPRING</span><br>spring MLT25S</p><p><br></p><p><span style="font-weight: bolder;">MLT25M3RT </span><b>torch + remote control 3 meters</b> <br></p><p><span style="font-weight: bolder;">MLT25M3RT </span><b>torch + remote control 3 meters incl. teflon liner</b></p><p>Comes standard with 3 welding torch tips M6: 0.8 / 1.0 / 1.2<br></p>
-
Cooling system
gas
-
CO₂ load
340A
-
Mixed Gas Load
300A
-
Duty cycle
60%
-
Wire diameter
0.8 - 1.6mm

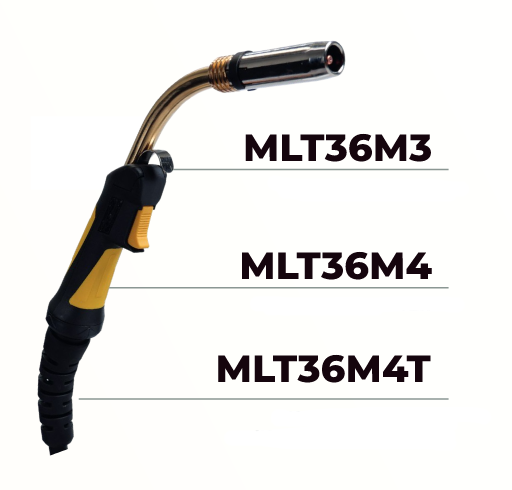

<p><span style="font-weight: bolder;">Wear parts</span><br><span style="font-weight: bolder;">1. NOZZLE product code</span></p><p>gas nozzle 36 MLT36CN</p><p><span style="font-weight: bolder;">2. CONTACT TIP</span> M6 / 28mm<br>0.8mm MLT08M6T28<br>0.9mm MLT09M6T28<br>1.0mm MLT10M6T28<br>1.2mm MLT12M6T28<br>contact tip for aluminium<br>0.8mm MLT08M6T28AL<br>1.0mm MLT10M6T28AL<br>1.2mm MLT12M6T28AL<br><span style="font-weight: bolder;">3. TIP HOLDER</span><br>contact tip holder M6 MLT36ADM6<br>contact tip holder M8 MLT36ADM8<br><span style="font-weight: bolder;">4. GAS DISTRIBUTOR</span><br>gas distributor MLT36N</p><p>Comes standard with 4 welding torch tips M6: 0.8 / 1.0 / 1.2 / 1.6<br></p>
-
Cooling system
water
-
CO₂ load
400A
-
Mixed Gas Load
350A
-
Duty cycle
100%
-
Wire diameter
0.8 - 1.6mm

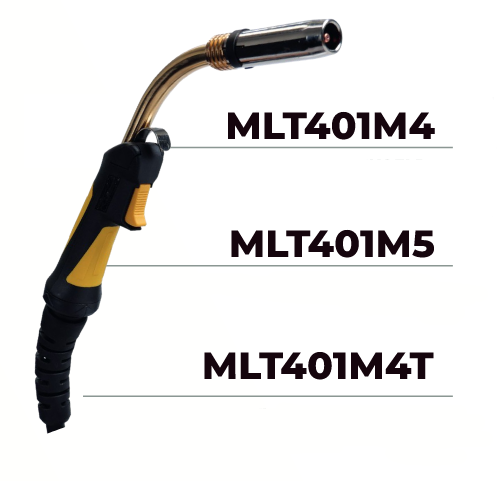

<p><span style="font-weight: bolder;">Wear parts</span><br><span style="font-weight: bolder;">1. NOZZLE product code</span></p><p>gas nozzle 401 MLT401CN<br><span style="font-weight: bolder;">2. CONTACT TIP</span> M8 / 30mm<br>0.8mm MLT08M8T30<br>1.0mm MLT10M8T30<br>1.2mm MLT12M8T30<br>1.6mm MLT16M8T30<br>contact tip for aluminium<br>0.8mm MLT08M8T30AL<br>1.0mm MLT10M8T30AL<br>1.2mm MLT12M8T30AL<br>1.6mm MLT16M8T30AL<br><span style="font-weight: bolder;">3. GAS DISTRIBUTOR</span><br>gas distributor MLT501N<br><span style="font-weight: bolder;">4. TIP HOLDER</span><br>contact tip holder M6* MLT501ADM6<br>contact tip holder M8 MLT501ADM8<br>*With the M6 tip holder, the M6 contact tips can be used</p><p>Comes standard with 4 welding torch tips M8: 2x 1.0 / 1x 1.2 / 1x 1.6<br></p>
-
Cooling system
water
-
CO₂ load
500A
-
Mixed Gas Load
450A
-
Duty cycle
100%
-
Wire diameter
0.8 - 1.6mm

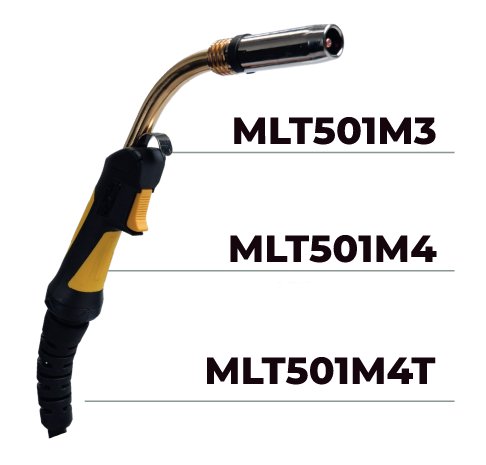

<p><span style="font-weight: bolder;">Wear parts</span><br></p><p><span style="font-weight: bolder;">1. NOZZLE product code</span><br>gas nozzle 501 MLT501CN<br><span style="font-weight: bolder;">2. CONTACT TIP</span> M8 / 30mm<br>0.8mm ML08M8T30<br>1.0mm MLT10M8T30<br>1.2mm MLT12M8T30<br>1.6mm MLT16M8T30<br>contact tip for aluminium<br>0.8mm MLT08M8T30AL<br>1.0mm MLT10M8T30AL<br>1.2mm MLT12M8T30AL<br>1.6mm MLT16M8T30AL<br></p><p><span style="font-weight: bolder;">3. GAS DISTRIBUTOR</span><br>gas distributor MLT501N<br><span style="font-weight: bolder;">4. TIP HOLDER</span><br>contact tip holder M6* MLT501ADM6<br>contact tip holder M8 MLT501ADM8</p><p>*With the M6 tip holder, the M6 contact tips can be used<br></p><p>Comes standard with 4 welding torch tips M8: 0.8 / 1.0 / 1.2 / 1.6<br></p>
