PLASMA TORCHES

  • Ergonomic handle
  • Ball joint at the bottom of the torch
  • Optimal position of the switch

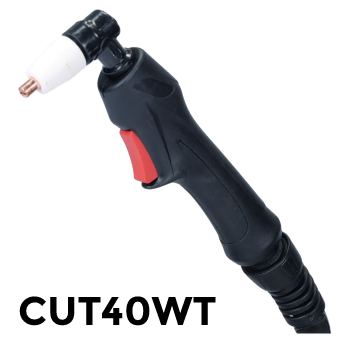

This Soldatech plasma cutting torch has an ergonomic handle and a ball joint at the bottom of the torch. This, in combination with the optimal position of the switch, ensures great ease of use in all cutting positions.

All consumables for this torches are also available.

  • Connection
    euro connector

  • Length
    3 m

  • Air consumption
    80 L/min

  • Air pressure
    3.5 - 6.5 Bar

  • Duty cycle
    50%

  • Current
    40A

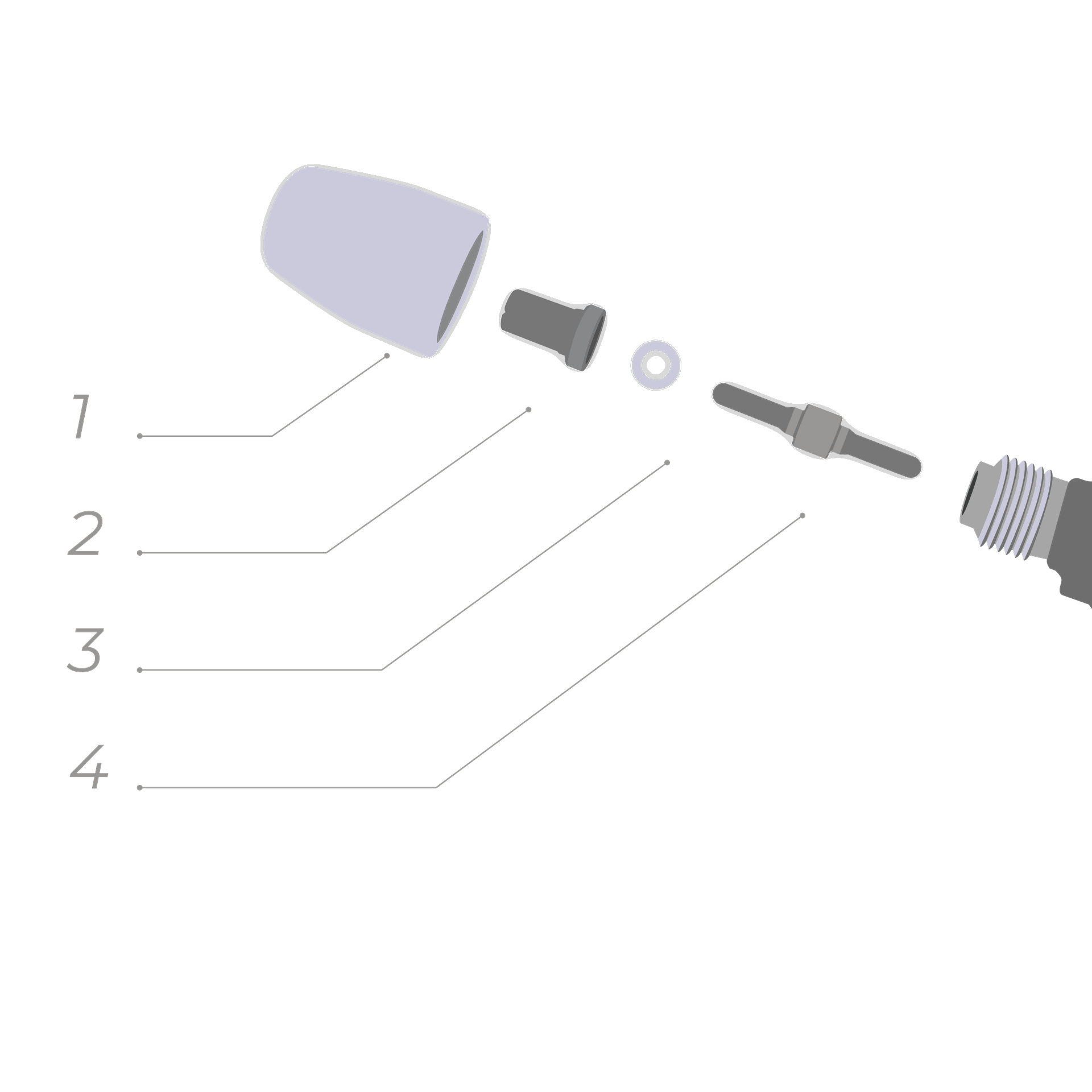

<p><span style="font-weight: bolder;">Wear parts</span>&nbsp;/<span style="font-weight: bolder;">product code:</span><br><span style="font-weight: bolder;">1. Ceramic head&nbsp; </span>CUT40WTC<br><span style="font-weight: bolder;">2. TIP&nbsp; </span>CUT40WTT<br><span style="font-weight: bolder;">3. Ceramic ring&nbsp;&nbsp;</span>CUT40WTCR<br><span style="font-weight: bolder;">4. Electrode&nbsp; </span>CUT40WTTH<br></p><p> The connection is made via a union nut with a connection thread (M16x1.5 mm screw connection). The switching contact for the ignition is established via a 2-pin connector plug.<br>Suitable for several plasma cutter's being sold in Europe incl.: Parkside PPS40B2, AVALON40, Stamos s-cutter 50.1 &amp; S-cutter 40.</p><p>Includes:</p><ul><li>3x CUT40WTT TIP</li><li>3x CUT40WTC Ceramic head</li><li>3x CUT40WTTH Electrode</li><li>1x CUT40WTCR Ceramic ring<br></li></ul><p></p>

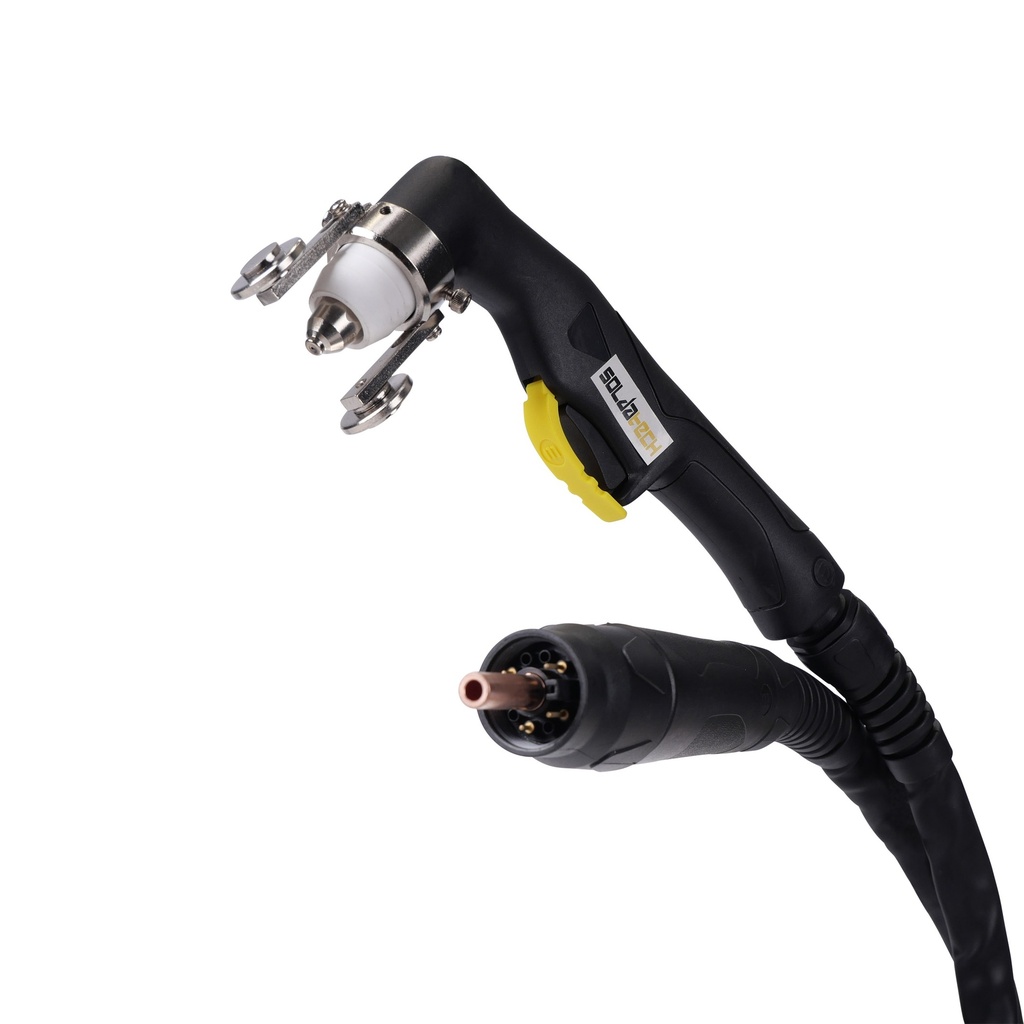

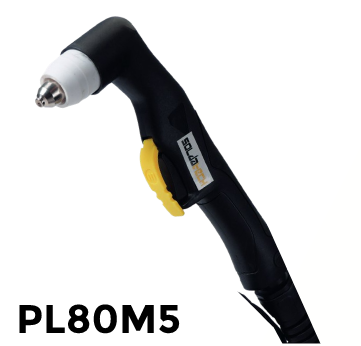

  • Connection
    euro connector

  • Length
    5 meters

  • Air consumption
    220 L/min

  • Duty cycle
    60%

  • Current
    80A

  • Air pressure
    4.5 - 5.0 Bar

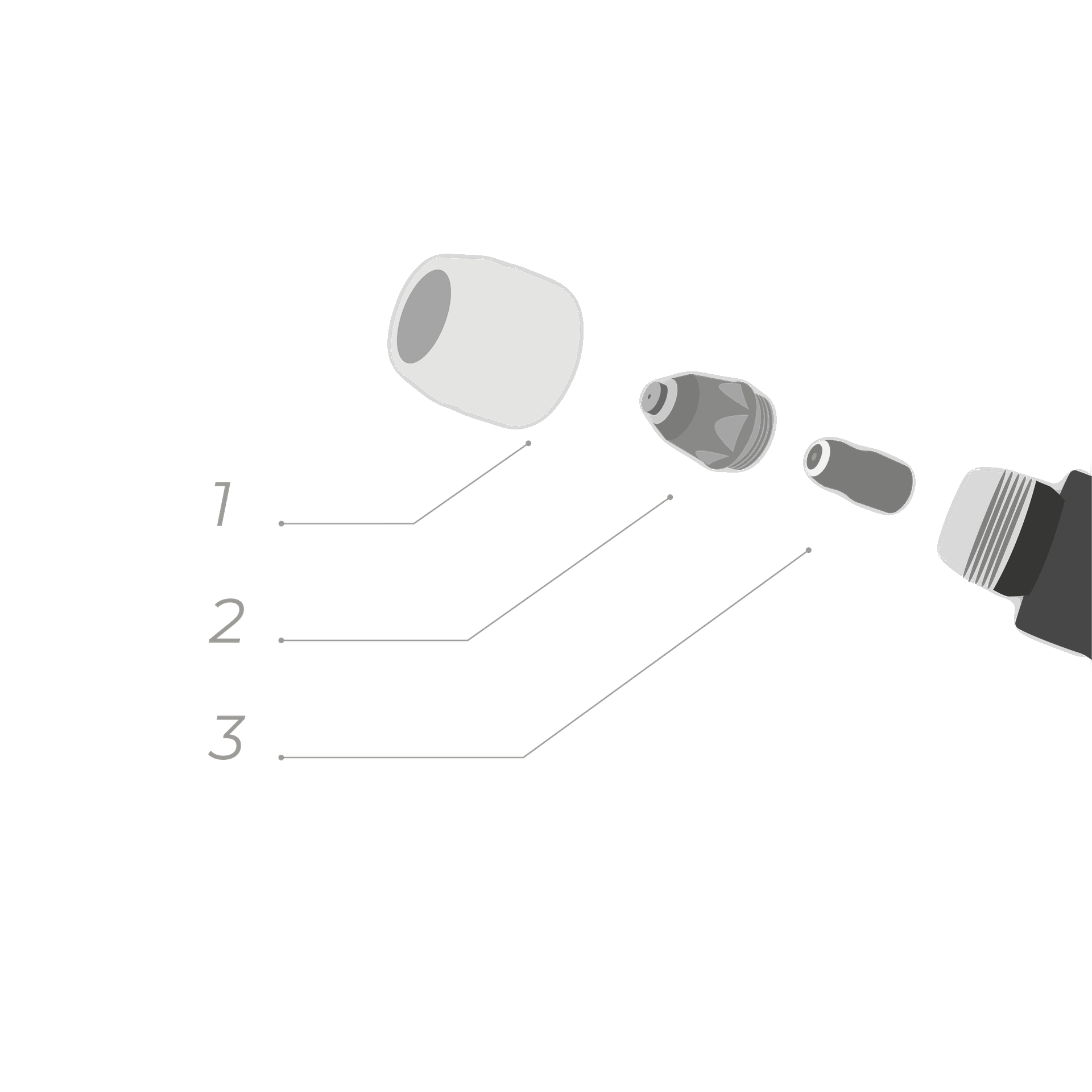

<p><span style="font-weight: bolder;">Wear parts /product code:</span></p><p><span style="font-weight: bolder;">1. Ceramic head</span> 1x CUT80WTC<br><span style="font-weight: bolder;">2. TIP</span> 1.3mm CUT80WTT13<br>&nbsp; &nbsp;<span style="font-weight: bolder;"> TIP</span> 1.5mm CUT80WTT15<br>&nbsp; &nbsp; <span style="font-weight: bolder;">TIP</span> 1.7mm CUT80WTT17<br><span style="font-weight: bolder;">3. Electrode</span>&nbsp;2 x CUT80WTTH<br></p><p>Includes:</p><ul><li>ceramic cap&nbsp;=&nbsp; 1x CUT80WTC<br></li><li>TIP = 2x&nbsp;1.1mm</li><li>electrode = 2x CUT80WTTH</li><li>disassembly key<br></li></ul>

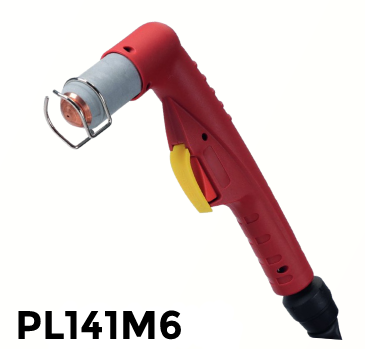

  • Length
    6 meters

  • Connection
    euro connector

  • Air pressure
    4.5 - 5.0 Bar

  • Current
    140A

  • Duty cycle
    60%

  • Air consumption
    220 L/min

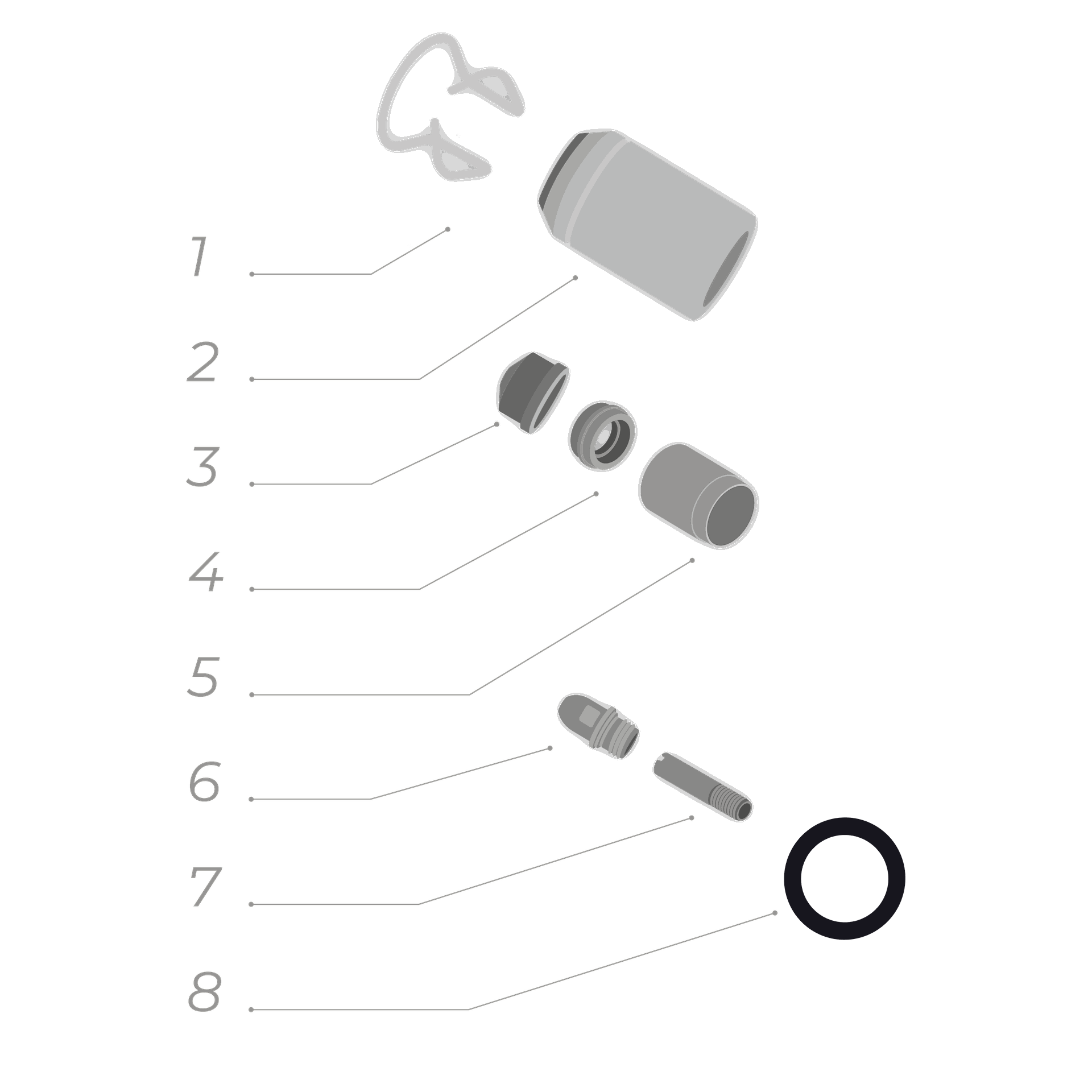

<p><span style="font-weight: bolder;">Wear parts /product code:</span></p><p><span style="font-weight: bolder;">1. 2-point spacer</span>&nbsp;PL141A<br><span style="font-weight: bolder;">2.</span> <span style="font-weight: bolder;">Ceramic Head</span> PL141C<br><span style="font-weight: bolder;">3. TIP</span> PL141T<br><span style="font-weight: bolder;">4. Gas contributor</span> PL141D<br><span style="font-weight: bolder;">5. LT 141 insulator ring</span> PL141IR<br><span style="font-weight: bolder;">6.</span> <span style="font-weight: bolder;">Electrode</span> PL141E<br><span style="font-weight: bolder;">7. LT 141</span> <span style="font-weight: bolder;">gaspin</span> PL141P<br><span style="font-weight: bolder;">8. LT 141</span> <span style="font-weight: bolder;">rubber ring </span>PL141RR<br></p><p> Includes: <br></p><ul><li>2-point spacer = 1x PL141A</li><li>Ceramic head&nbsp;= 1x PL141C</li><li>TIP 1.7mm = 1x PL141</li><li>Gas distributor = 1x PL141D</li><li>LT141 insulation ring = 1x PL141R</li><li>Electrode = 1x PL141E</li><li>LT141 gas&nbsp;pin = 1x PL141P</li><li>LT141 rubber ring = 1x PL141RR</li></ul>
