TIG TORCHES

  • Ergonomic handle and 1 meter leather
  • Ball joint at the bottom of the torch
  • Optimal position of the switch
  • Flexible torch with bendable head
  • Latest torch-control system

Soldatech welding torches have an ergonomic handle, a heat-resistant cover and are suitable for welding machines with a Lift-TIG function.
All consumables for this torch are also available.

  • Length
    4 m

  • Cooling system
    gas

  • Duty cycle
    35%

  • Load DC (with argon)
    180A

  • Load AC (with argon)
    150A

  • Tungsten Electrode Range
    1.6 - 3.2mm

Includes:

  • 3x ceramic gas nozzle = 5, 6 and 7mm
  • 3x collet holder = 1.6 / 2.0 / 2.4
  • European dinse couplers:

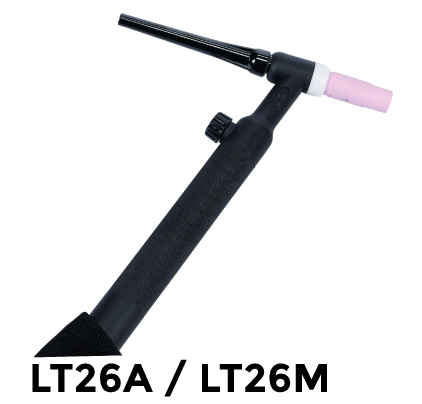

  • LT26A = 13mm
  • LT26 M = 9 mm

  • Length
    4 m

  • Cooling system
    water

  • Duty cycle
    35%

  • Load DC (with argon)
    350A

  • Load AC (with argon)
    260A

  • Tungsten Electrode Range
    1.6 - 3.2mm

Includes:

  • ceramic gas nozzle = 5, 6 and 7mm

  • collet holder = 3.2mm

  • collet = 1.6 / 2.0 / 2.4

  • Insulator ring = 21mm

  • cover cap = short and long

  • european dinse couplers = 13mm

  • Length
    4 m

  • Cooling system
    gas

  • Duty cycle
    35%

  • Load DC (with argon)
    110A

  • Load AC (with argon)
    95A

  • Tungsten Electrode Range
    0.5 - 2.4mm

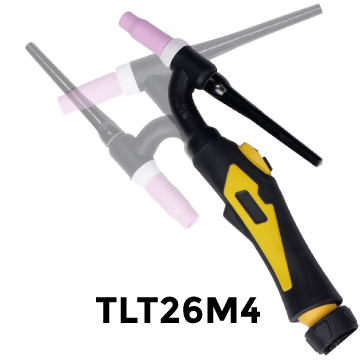

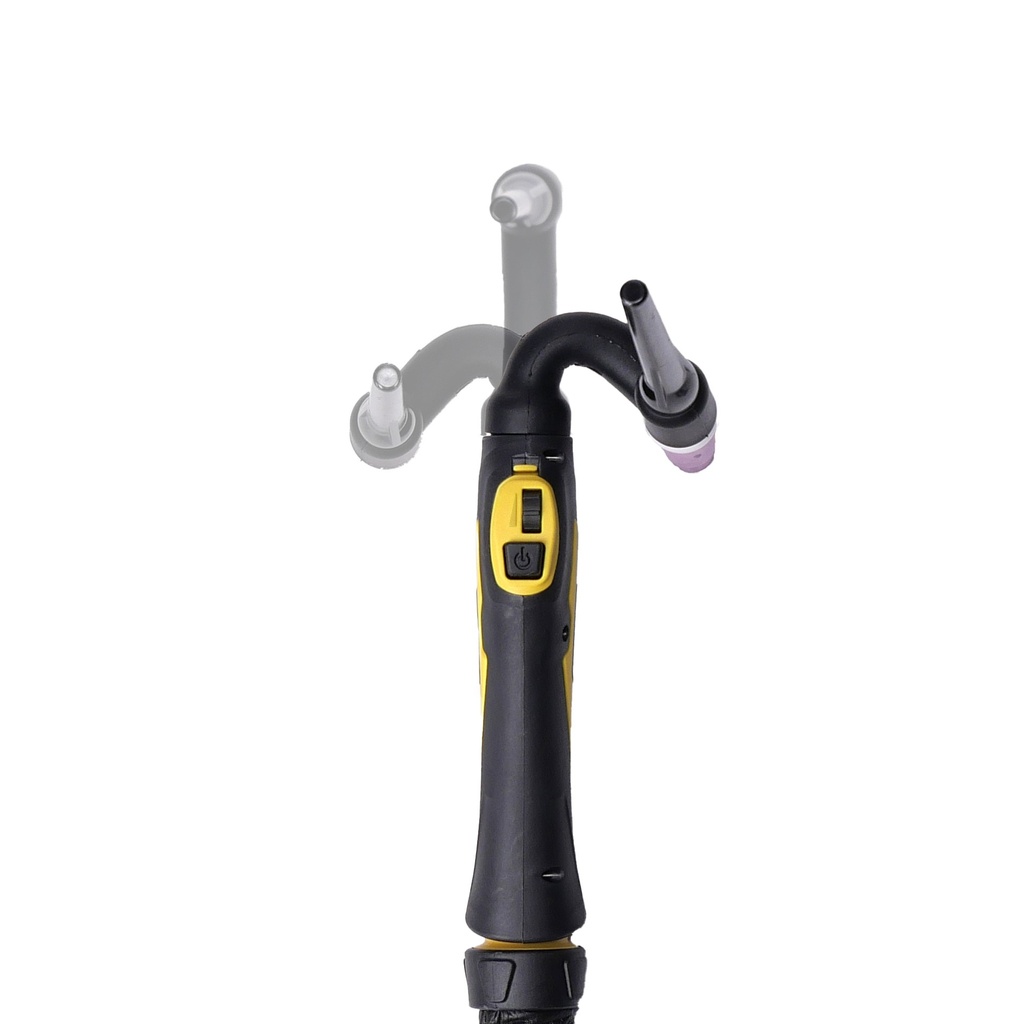

The TLT26M4 flex torch has a flexible head that allows TIG welding in any position. The TIG torch is also equipped with remote control tech with which the ampere range can be variably adjusted during welding.

Includes:

  • ceramic nozzle = 5, 6 and 7mm

  • collet holder = 3.2mm

  • collet = 1.6 / 2.0 / 2.4
  • Insulator ring = 21mm
  • cover cap = short and long
  • european dinse couplers = 13mm
